Sense · Gas Sensors
Gas Leak Detector
SENSE-LD101
The SENSE-LD101 is a flameproof industrial gas leak detector for hazardous areas.
1 / 4- Flameproof enclosure for hazardous areas.
- Supports multiple gas sensor types.
- 4–20 mA, RS485 & relay outputs.
- LED, buzzer & touch acknowledge.

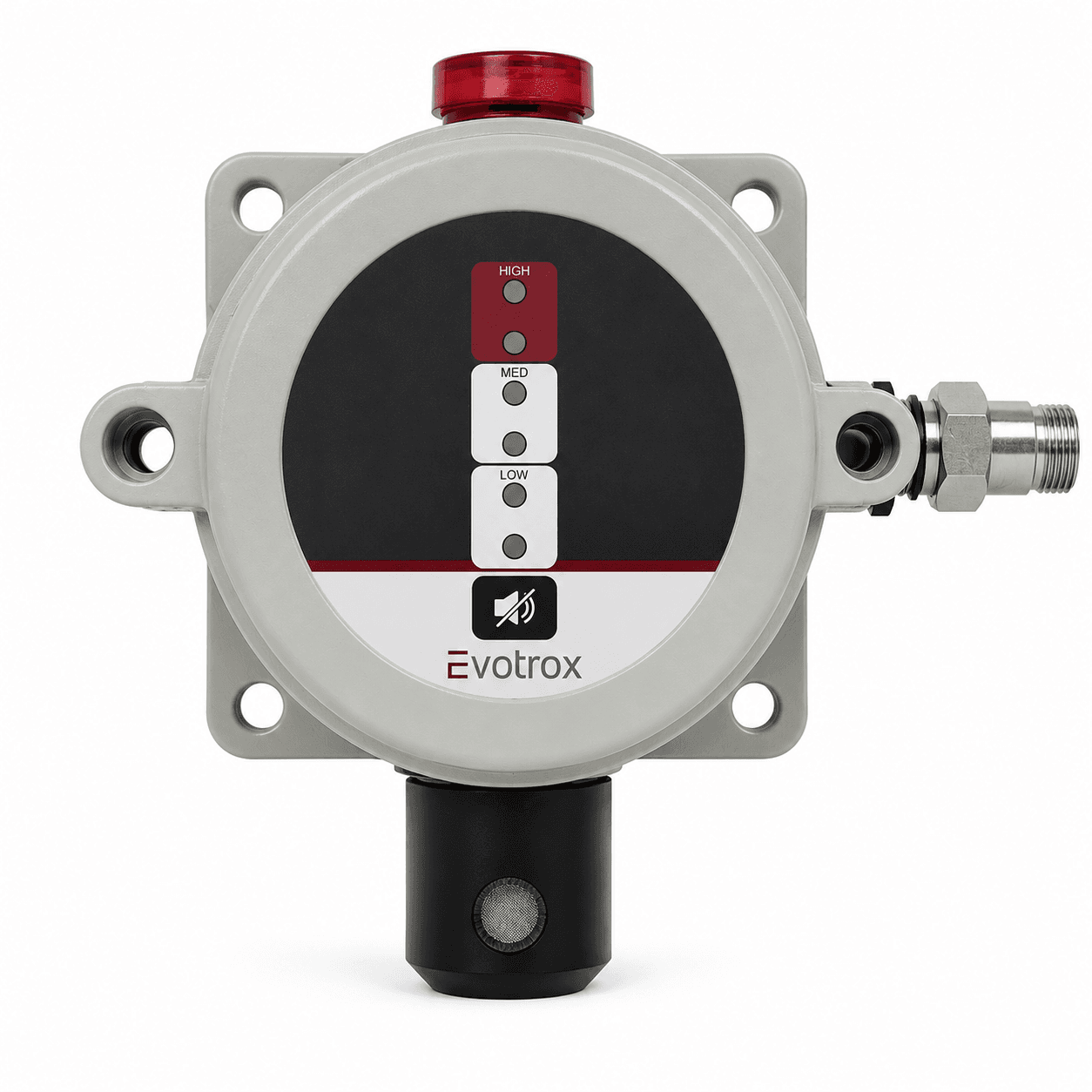

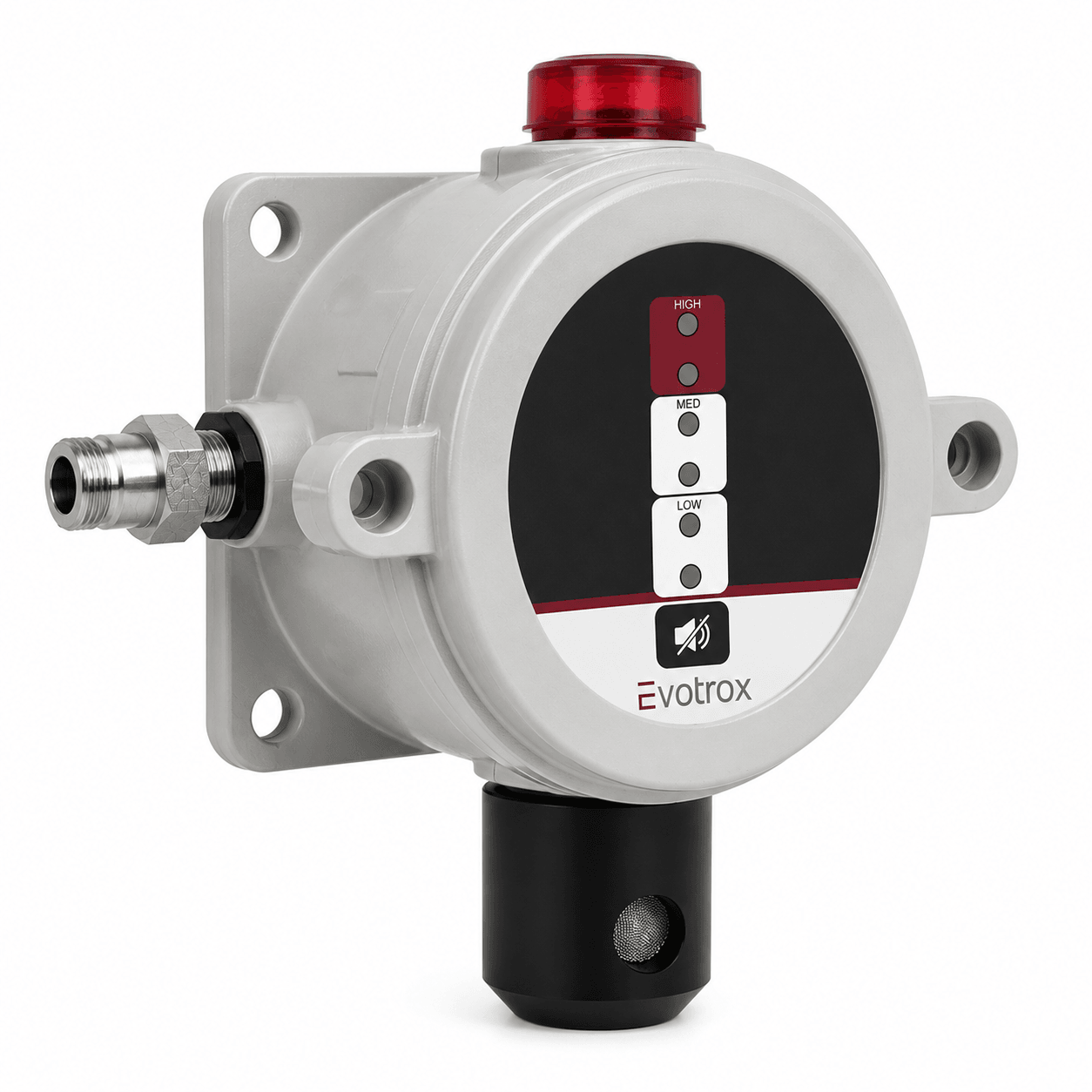

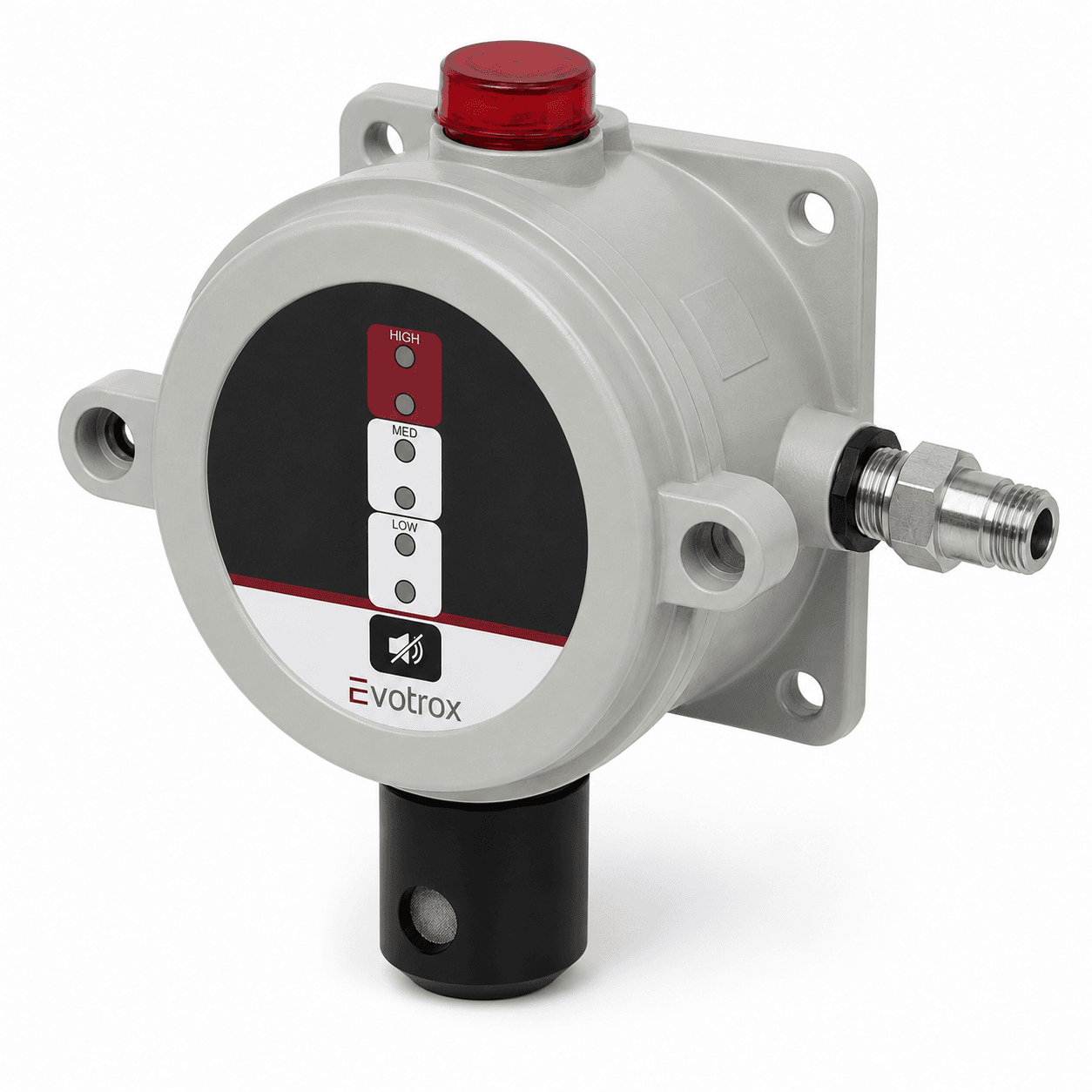

About the Gas Leak Detector SENSE-LD101
The SENSE-LD101 is a flameproof industrial gas leak detector for hazardous areas. It provides continuous gas monitoring, alarm indication, and communication with industrial control systems.
Key features
- Flameproof enclosure for hazardous areas.
- Supports multiple gas sensor types.
- 4–20 mA, RS485 & relay outputs.
- LED, buzzer & touch acknowledge.
- Rugged design for 24×7 operation.
Gas Leak Detector technical specification
Download PDF- Sensor Technology
- Electrochemical / Catalytic / Pellistor / NDIR
- Configured Target Gas
- Ammonia (NH₃) - SG-2
- Sensing Range
- 0 to 1000 PPM
- Cross Sensitivity
- Nil
- Typical Power Supply
- 24 VDC
- Power Range
- 12 VDC to 30 VDC
- Outputs
- 4-20 mA, relay and buzzer
- Communication
- RS485 Modbus RTU
- Operating Temperature
- -15°C to +50°C
- Storage Temperature
- -10°C to +60°C
- Humidity
- <95% RH, non-condensing recommended
- Mounting
- Wall / surface mount
- Operation
- Continuous 24x7 monitoring
Applications of the Gas Leak Detector
- 01Oil & Gas plants
- 02Chemical industries
- 03Cold storage
- 04Hazardous areas
- 05Safety monitoring systems
Gas Leak Detector datasheets and downloads
