Gas Sensor
SENSE-GT100

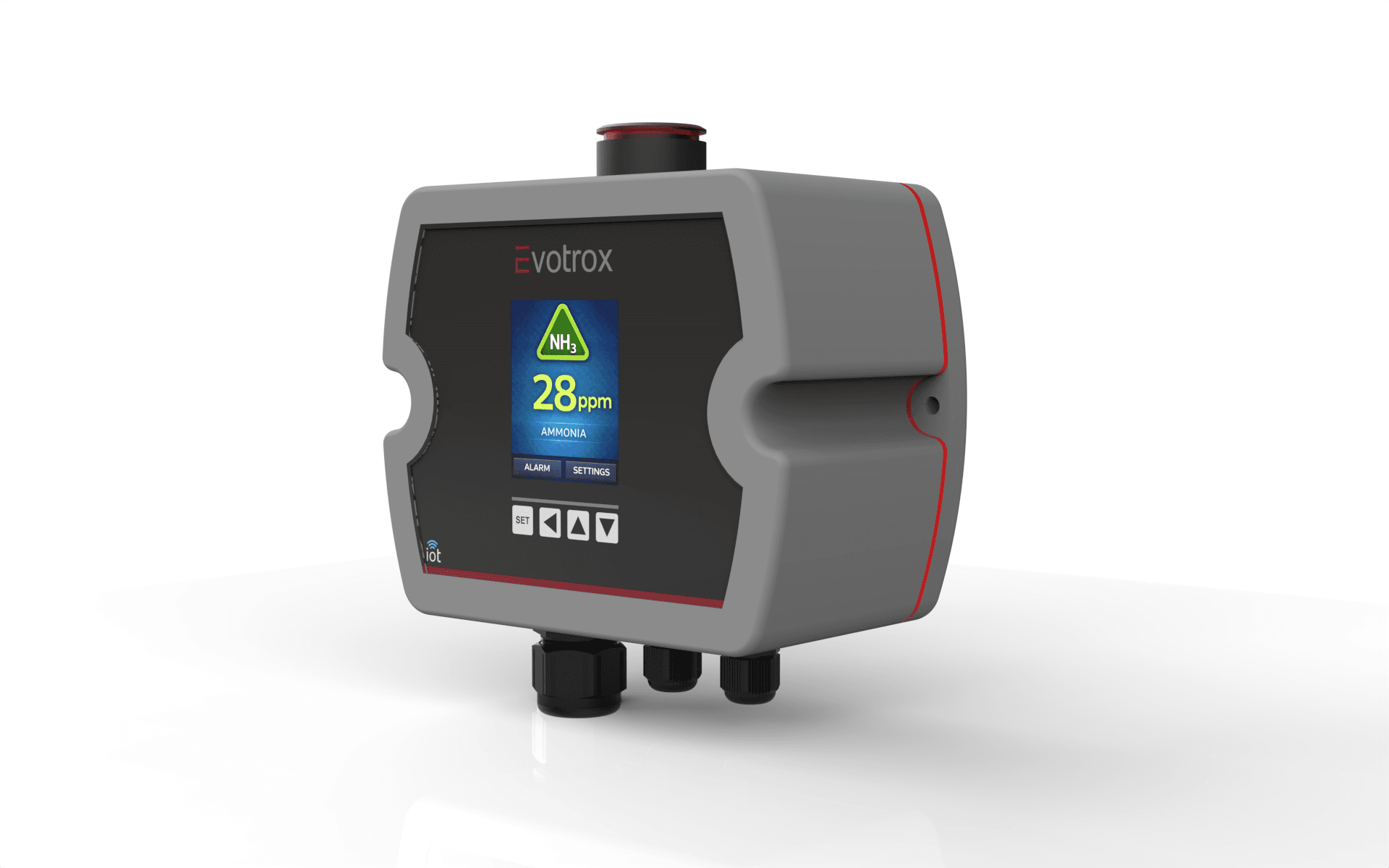

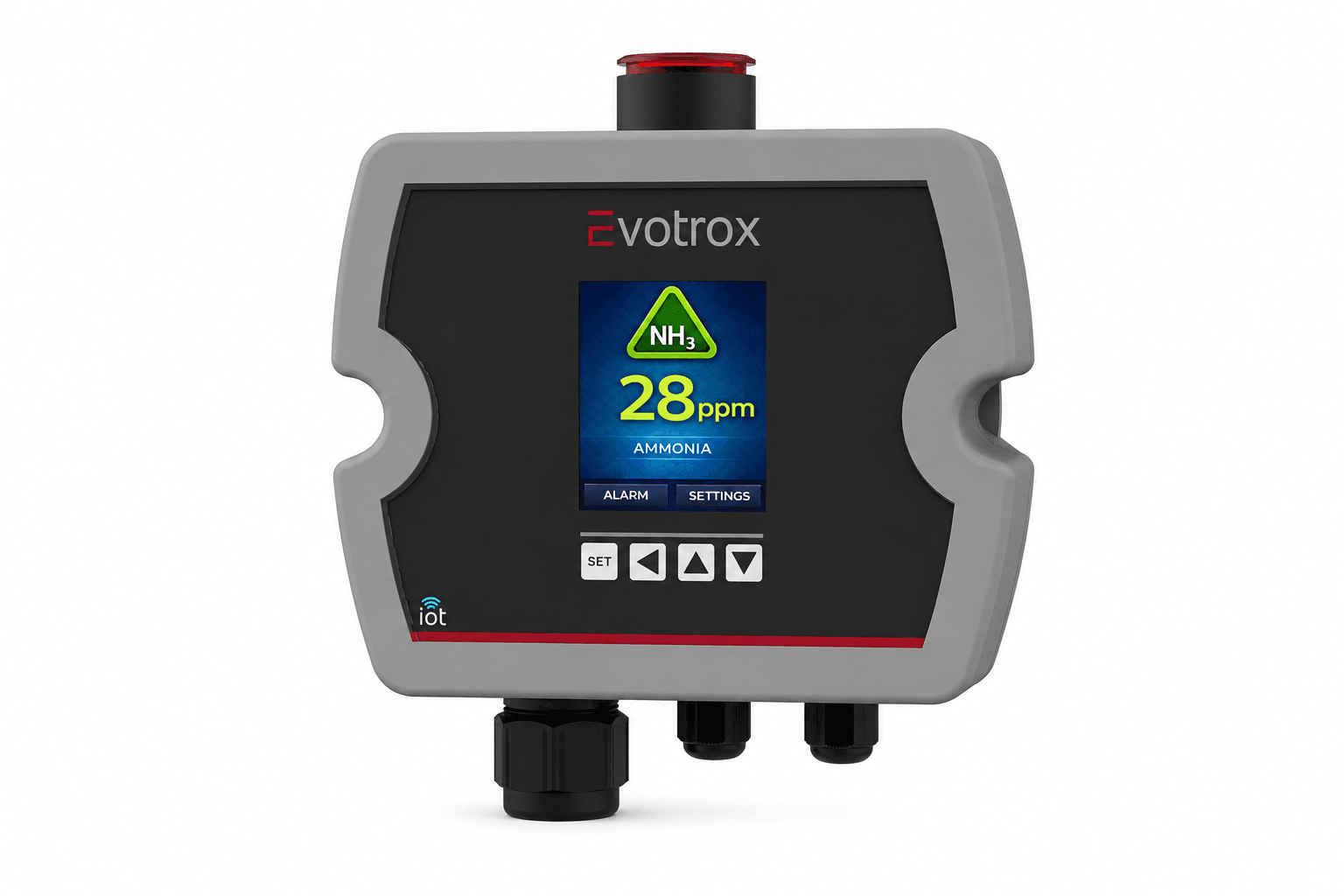

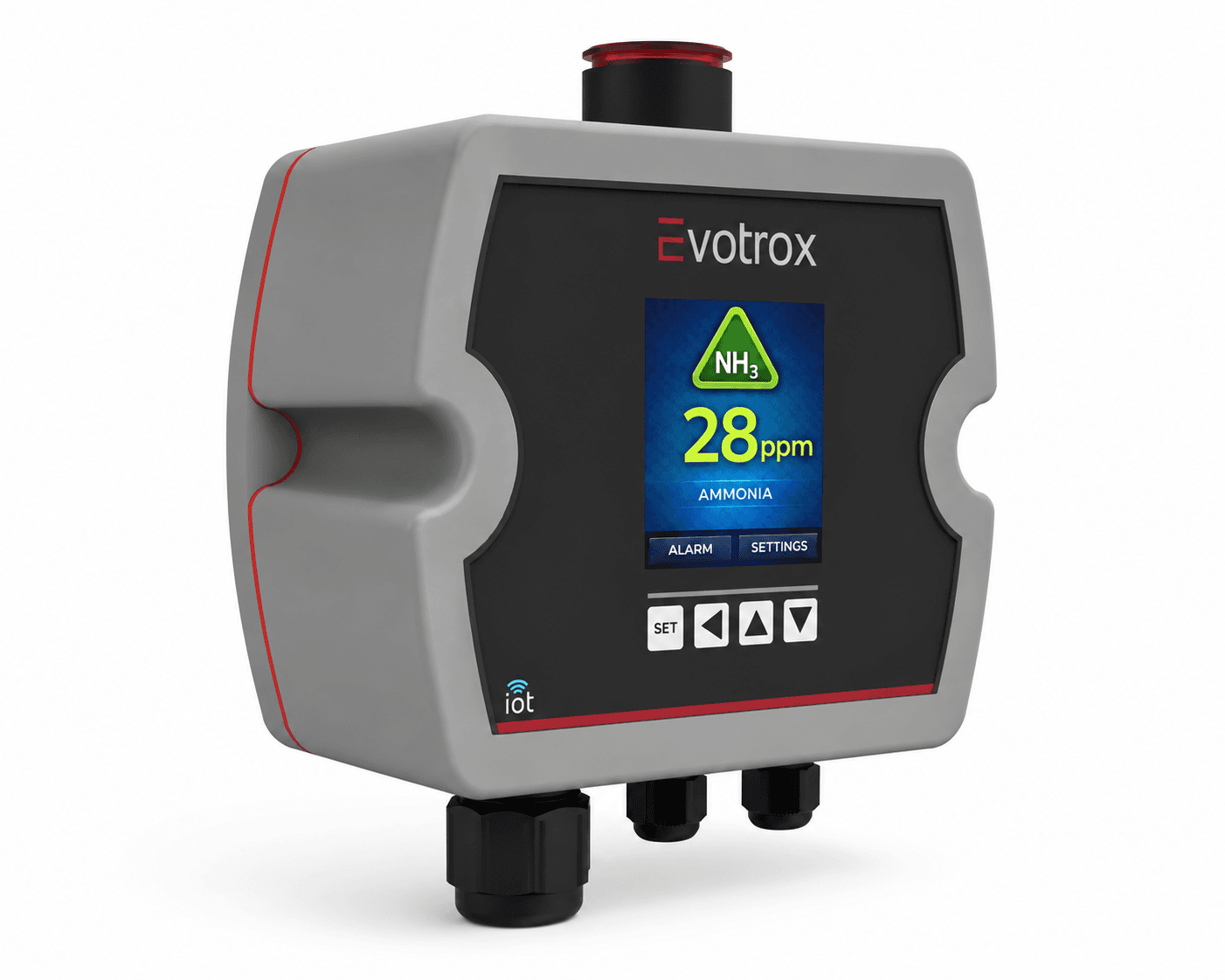

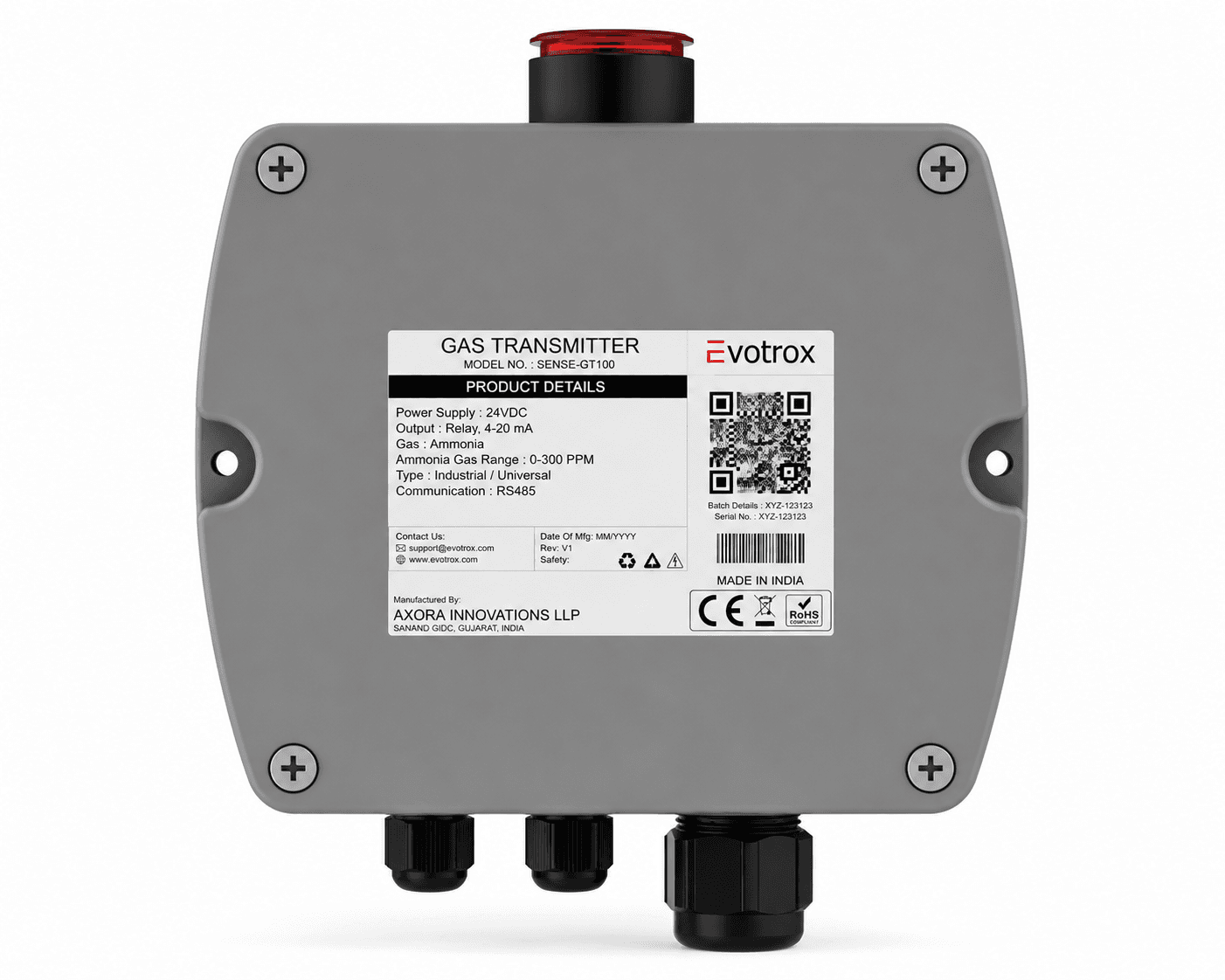

The SENSE-GT100 is a weatherproof industrial gas transmitter designed for continuous monitoring of a single target gas.
1 / 4- Weatherproof Enclosure.
- Single Gas Monitoring
- 2.4" TFT Display, 4–20 mA & RS485
- Ethernet, Wi-Fi & PoE
About the Gas Sensor SENSE-GT100
The SENSE-GT100 is a weatherproof industrial gas transmitter designed for continuous monitoring of a single target gas. It features local display, alarms, industrial communication, and IoT connectivity.
Key features
- Weatherproof Enclosure.
- Single Gas Monitoring
- 2.4" TFT Display, 4–20 mA & RS485
- Ethernet, Wi-Fi & PoE
- 24×7 Monitoring with Cloud Connectivity
Gas Sensor technical specification
Download PDF- Sensor Technology
- Electrochemical / Catalytic / Pellistor / NDIR, depending on target gas
- Configured Target Gas
- Ammonia (NH3) - SG-2 for this manual copy
- Sensing Range
- 0 to 1000 PPM
- Cross Sensitivity
- Nil
- Gas Channels
- Single target gas sensor module only
- Display
- 2.4” TFT LCD color display
- User Interface
- Touch Keypad for device configuration
- Typical Power Supply
- 24 VDC
- Power Supply Range
- 12 to 30 VDC
- PoE
- PoE support through Ethernet interface
- Outputs
- 4-20 mA analog output, relay output and buzzer/top indicator
- Communication
- RS485 Modbus RTU, Ethernet Modbus TCP/IP
- Cloud Protocols
- MQTT(S), HTTP(S)
- Internet Connectivity
- Ethernet / Wi-Fi depending on model variant
- Operating Temperature
- 10°C to +50°C or as per final sensor datasheet
- Storage Temperature
- 10°C to +60°C or as per final sensor datasheet
- Humidity
- <95% RH, non-condensing recommended
- Mounting
- Wall / surface mount
Applications of the Gas Sensor
- 01Cold Storage & Ammonia Refrigeration Systems
- 02Compressor, Boiler & Utility Rooms
- 03Chemical, Food & Pharmaceutical Plants
- 04Water Treatment & Industrial Safety Systems
- 05SCADA, BMS, PLC & IoT Gas Monitoring Systems
