Sense · Gas Sensors
Gas Leak Detector
SENSE-LD100

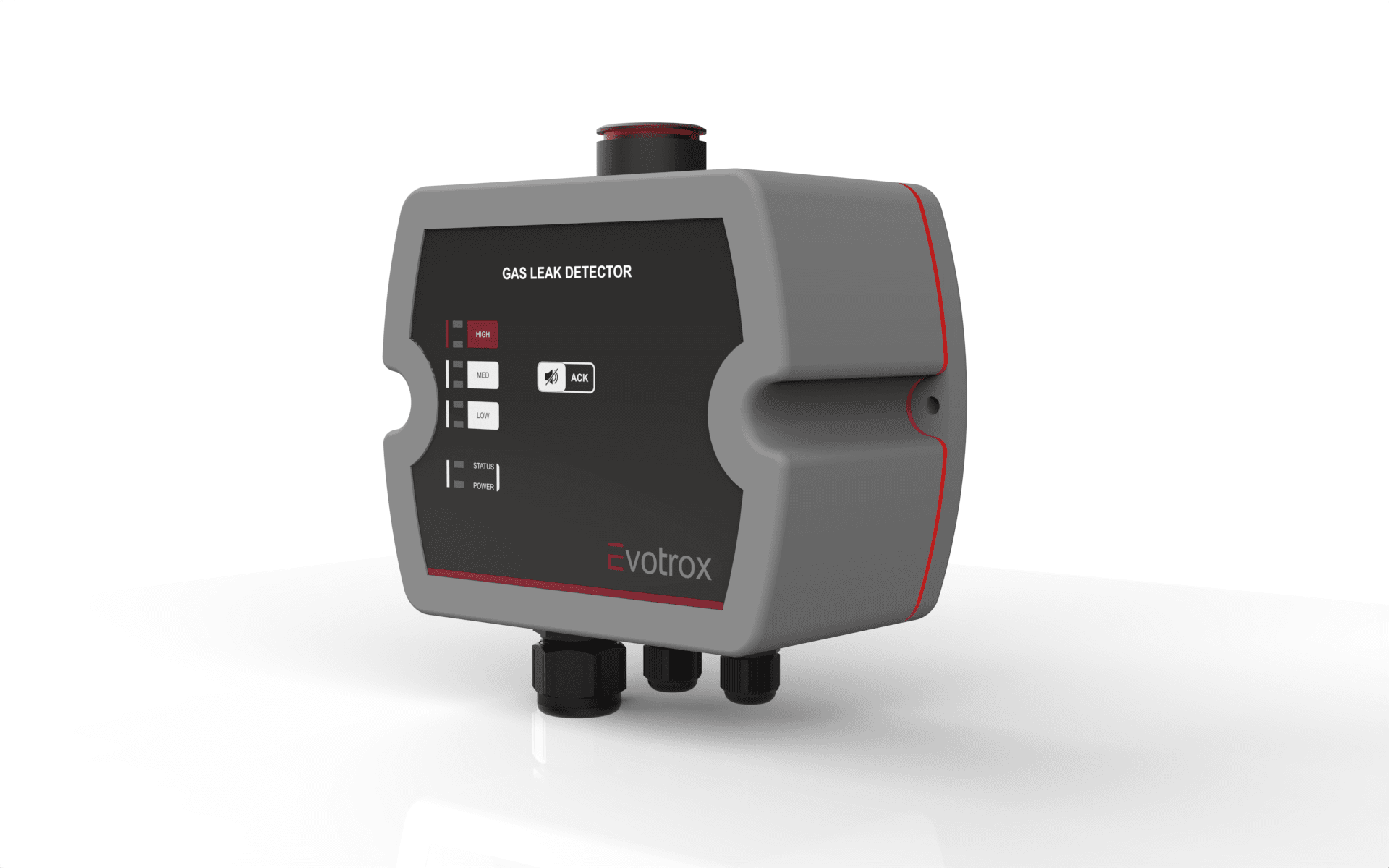

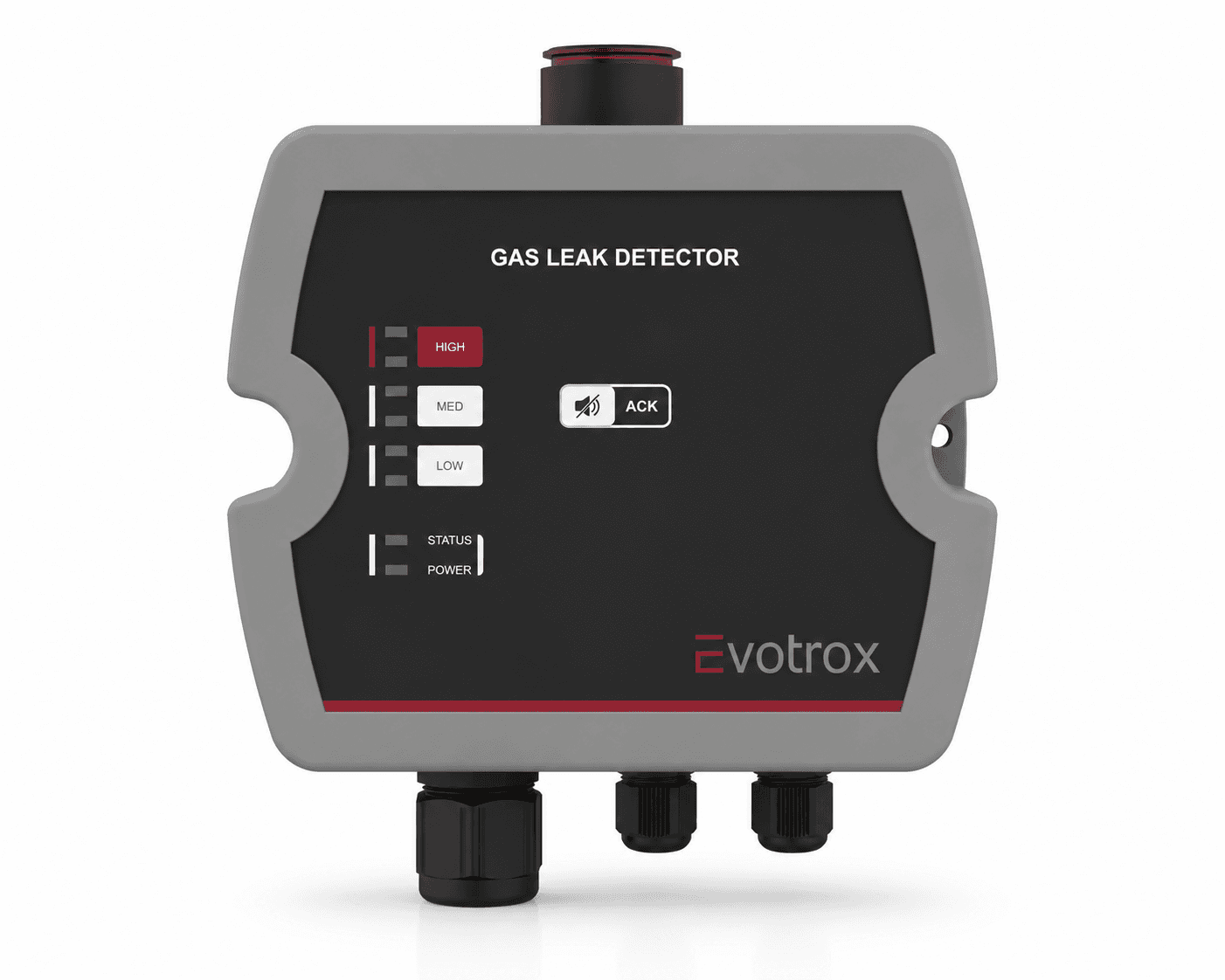

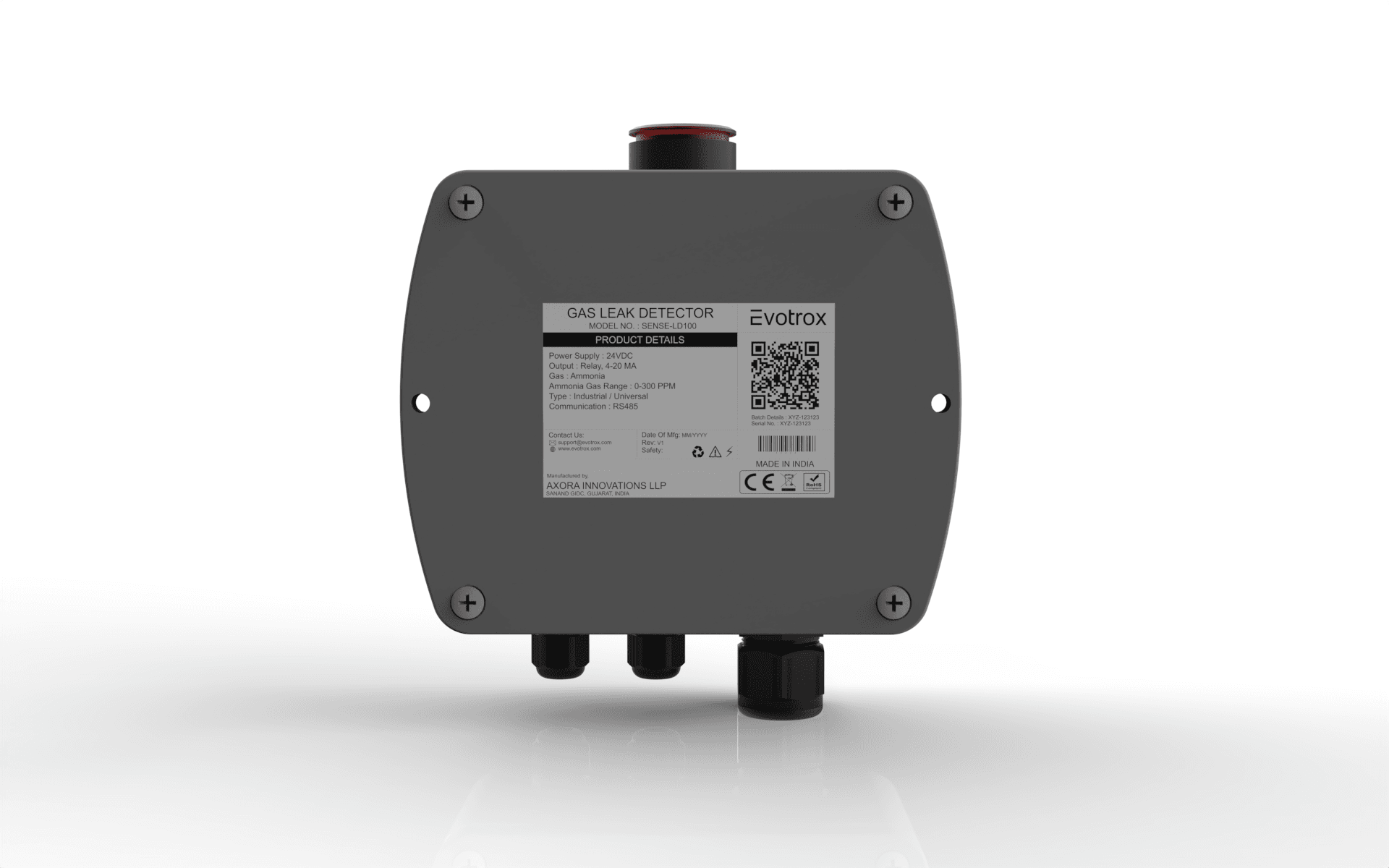

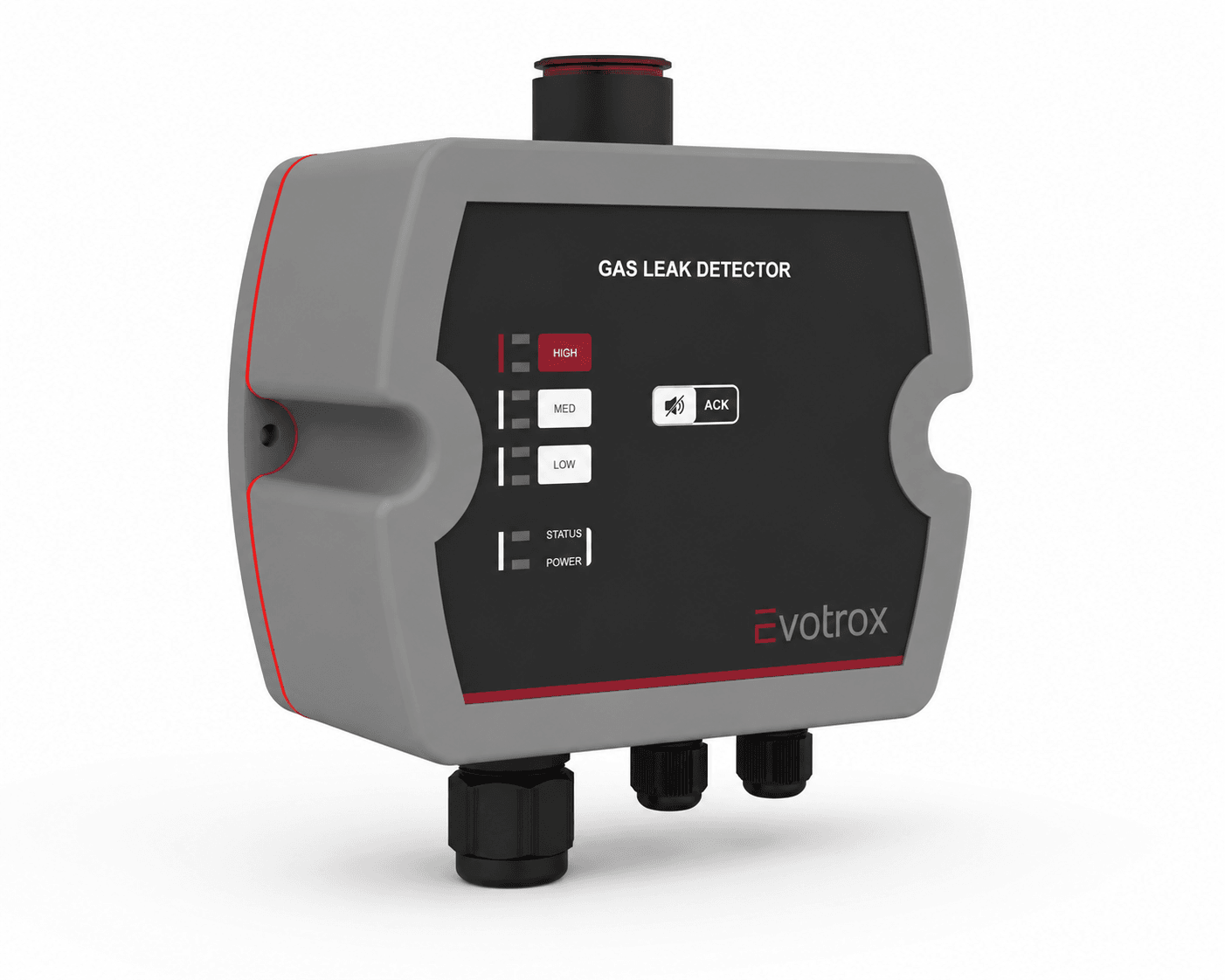

SENSE-LD100 is a microprocessor-based industrial gas leak detector that supports multiple sensor technologies for detecting various gases.
1 / 4- Weatherproof enclosure for industrial areas.
- Supports multiple gas sensor types.
- 4–20 mA, RS485 & relay outputs.
- LED, buzzer & alarm indication.
About the Gas Leak Detector SENSE-LD100
SENSE-LD100 is a microprocessor-based industrial gas leak detector that supports multiple sensor technologies for detecting various gases. Its modular design allows different compatible sensor modules to be used on the same hardware platform, depending on the application and calibration.
Key features
- Weatherproof enclosure for industrial areas.
- Supports multiple gas sensor types.
- 4–20 mA, RS485 & relay outputs.
- LED, buzzer & alarm indication.
- 24×7 monitoring with PLC/SCADA/BMS compatibility.
Gas Leak Detector technical specification
Download PDF- Sensor Technology
- Electrochemical / Catalytic / Pellistor / NDIR
- Configured Target Gas
- Ammonia (NH3) - SG-2
- Sensing Range
- 0 to 1000 PPM
- Cross Sensitivity
- Nil
- Typical Power Supply
- 24 VDC
- Power Supply Range
- 12 to 30 VDC
- Outputs
- 4-20 mA
- Communication
- RS485 Modbus RTU
- Digital Output
- Relay Output
- Operating Temperature
- -15°C to +50°C
- Storage Temperature
- -10°C to +60°C
- Humidity
- <95% RH, non-condensing recommended
- Mounting
- Wall mount
- Operation
- Continuous 24x7 monitoring
- Enclosure
- Weather protected industrial enclosure
Applications of the Gas Leak Detector
- 01Oil & Gas & Refineries
- 02Cold storage & CA systems
- 03Chemical & Power plants
- 04Boiler & Furnace areas
- 05Gas pipelines & Safety monitoring systems
Gas Leak Detector datasheets and downloads
Need this for your project?
Tell us about your application and our engineers will recommend the right configuration, with pricing and lead times.
