Monitor · Data Loggers
Data Logger
LOG-DL200

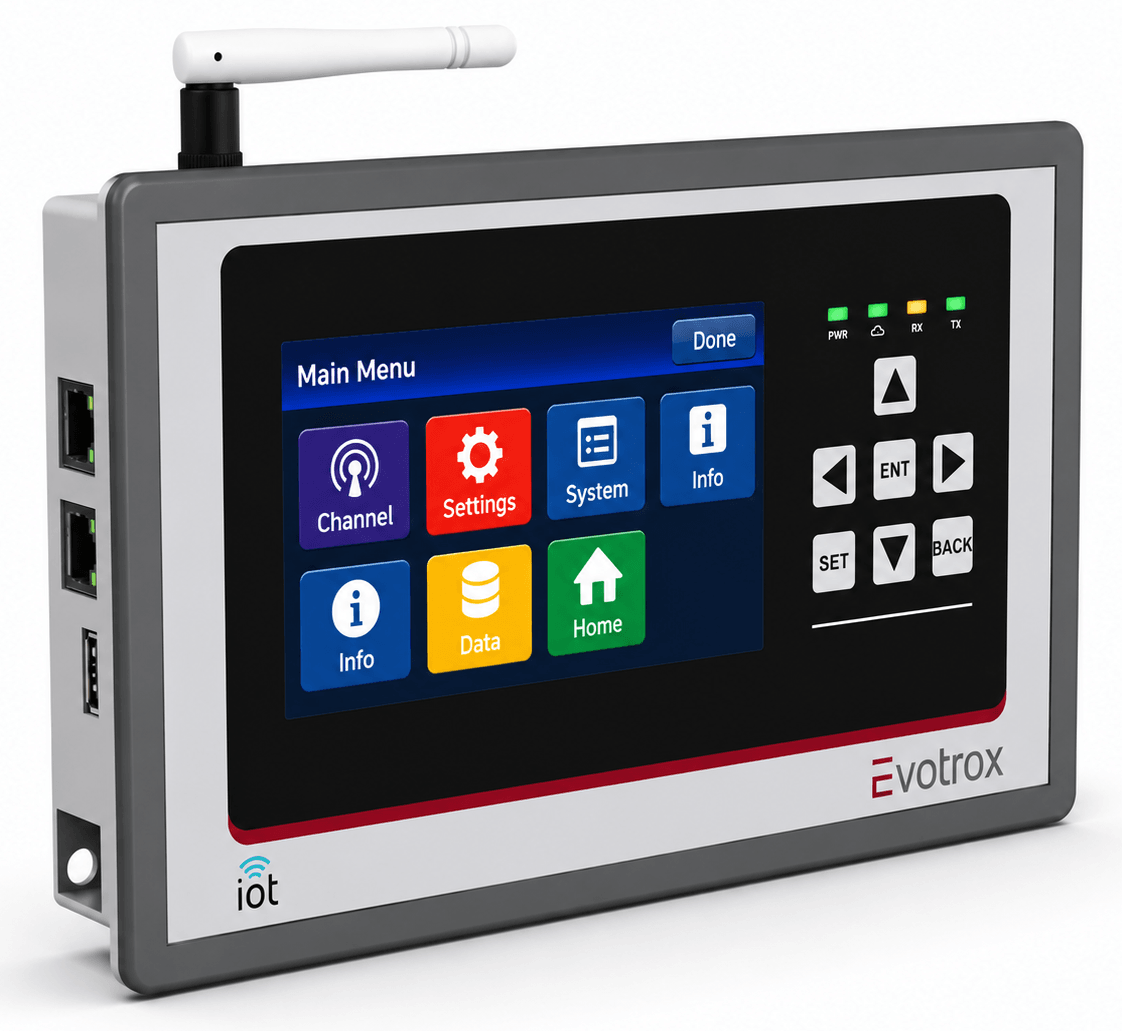

The LOG-DL200 is a compact panel-mounted data logger with display, keypad, communication, data logging, and IoT connectivity for local and remote monitoring.
1 / 3- 4.3" TFT Display & 7-Key Interface
- Real-Time Monitoring & Data Logging
- Alarm & Event Management
- RS485 Modbus & Ethernet
About the Data Logger LOG-DL200
The LOG-DL200 is a compact panel-mounted data logger with display, keypad, communication, data logging, and IoT connectivity for local and remote monitoring.
Key features
- 4.3" TFT Display & 7-Key Interface
- Real-Time Monitoring & Data Logging
- Alarm & Event Management
- RS485 Modbus & Ethernet
- USB Export, Cloud & FOTA
Data Logger technical specification
Download PDF- Supply Voltage
- 24 VDC, < 10 W
- Display
- 4.3-inch TFT
- Communication
- 2 x RS485, 1 LAN Port, 1 WAN Port
- USB
- USB data export (Secondary)
- Wireless Connectivity
- External antenna for supported wireless / cloud connectivity
- Mounting
- Panel mount
- Front Protection
- IP65
- Dimensions (W x H x D)
- 230 x 150 x 30 mm
- Panel Cutout
- 217 x 139 mm
- Operating Use
- Indoor industrial panel installation
Applications of the Data Logger
- 01Industrial Monitoring & Data Logging
- 02Cold Storage & Refrigeration
- 03Pharmaceutical & Food Industries
- 04Water & Wastewater Systems
- 05BMS & Environmental Monitoring
- 06Industrial IoT Applications
Data Logger datasheets and downloads
