Data Logger
LOG-DL100

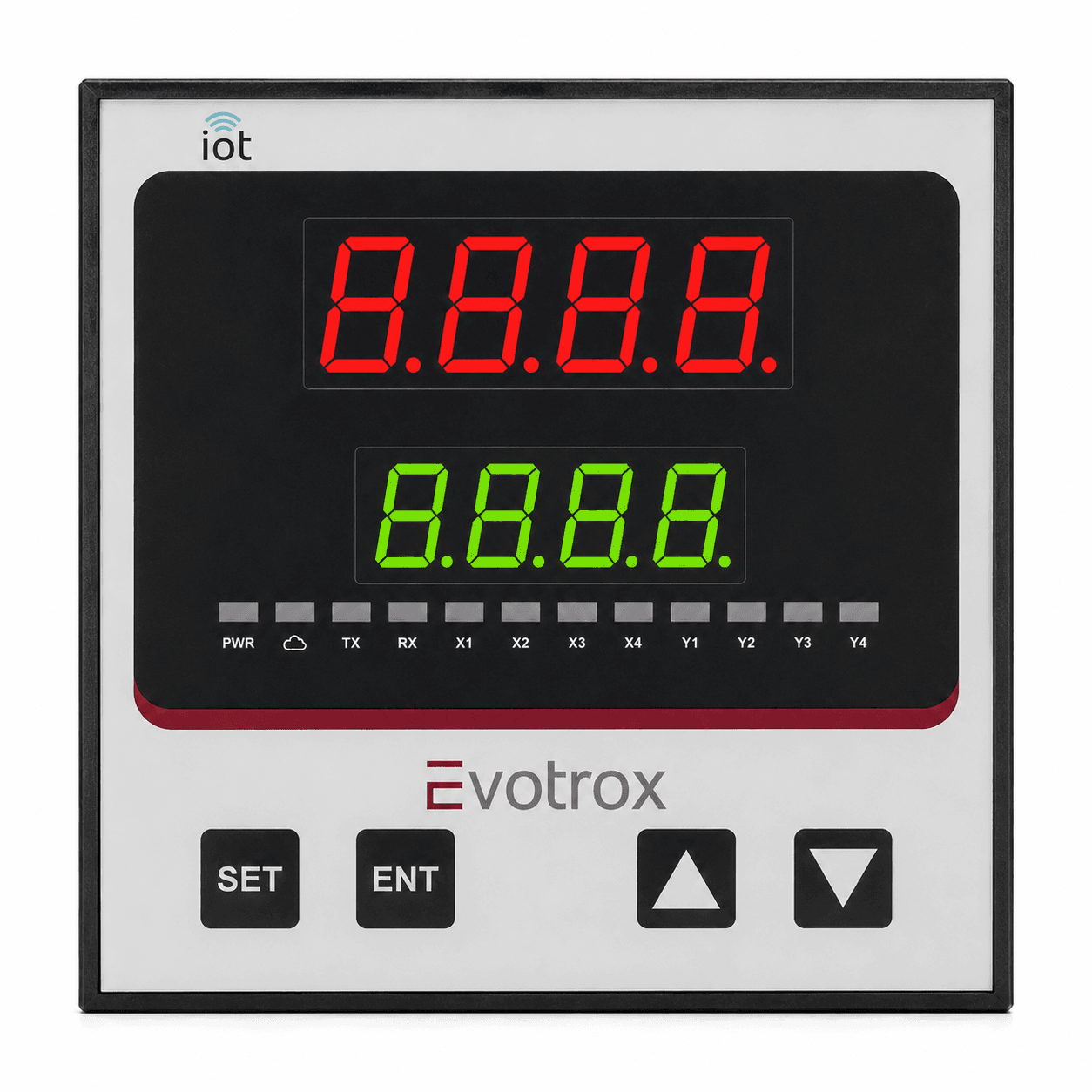

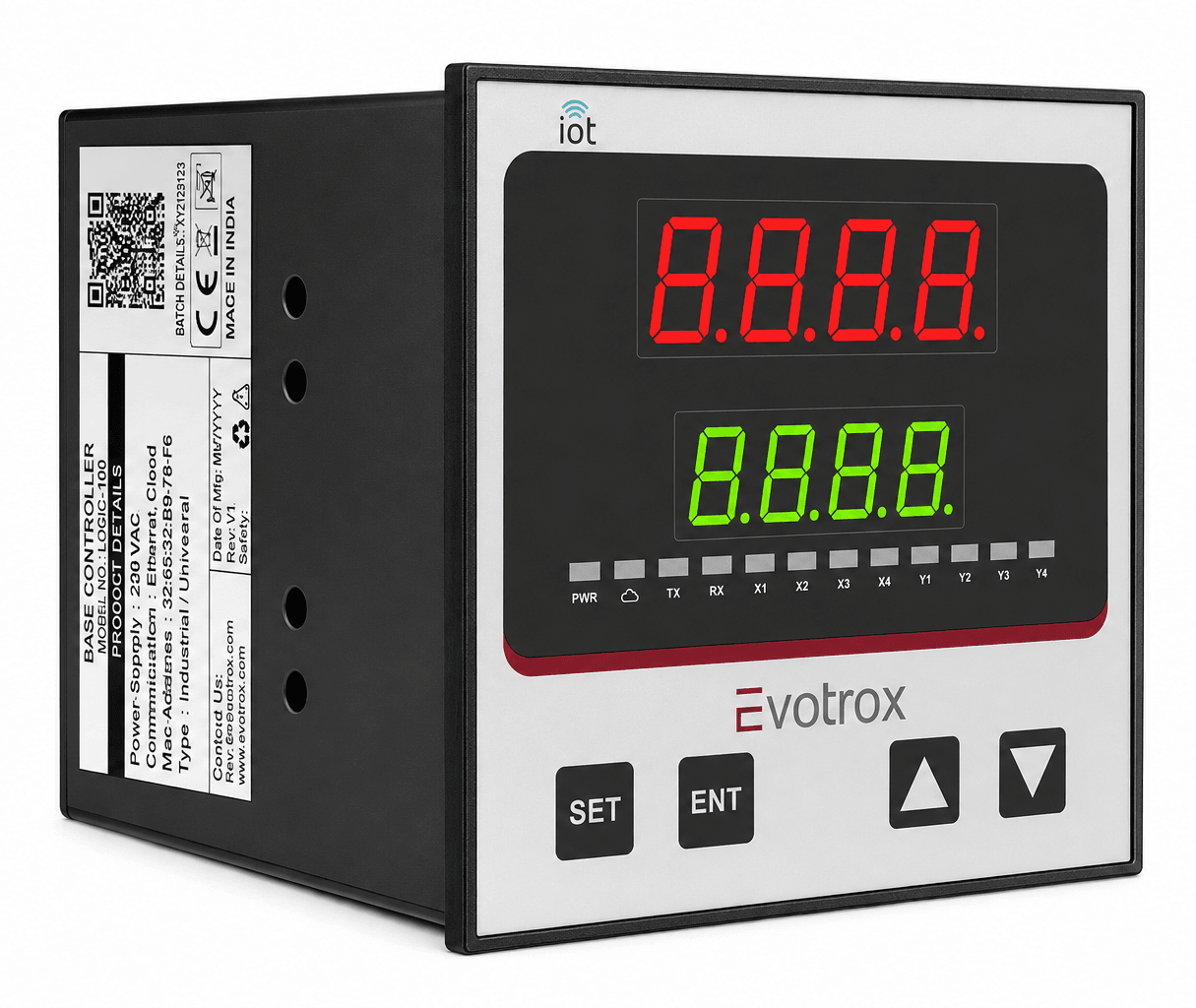

The LOG-DL100 is a compact panel-mounted data logger with display, keypad, communication, data logging, and IoT connectivity for local and remote monitoring.
1 / 4- 7-Segment Display & 7-Key Interface
- Real-Time Monitoring & Data Logging
- Alarm & Event Management
- RS485 Modbus RTU & Ethernet
About the Data Logger LOG-DL100
The LOG-DL100 is a compact panel-mounted data logger with display, keypad, communication, data logging, and IoT connectivity for local and remote monitoring.
Key features
- 7-Segment Display & 7-Key Interface
- Real-Time Monitoring & Data Logging
- Alarm & Event Management
- RS485 Modbus RTU & Ethernet
- Cloud Connectivity & FOTA
Data Logger technical specification
Download PDF- Supply Voltage
- 24 VDC, < 10 W
- Display
- 7 SEGMENT DIGITAL

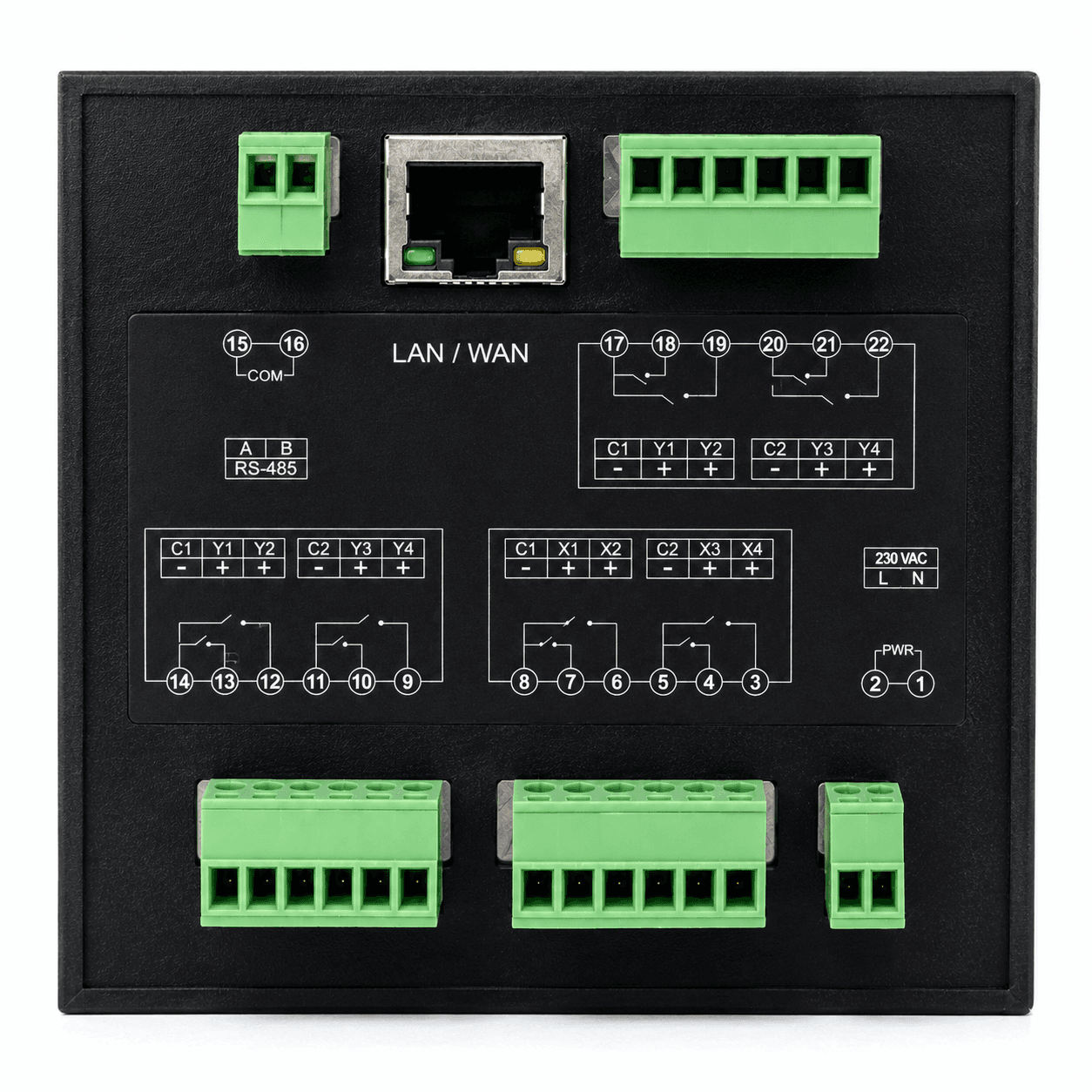

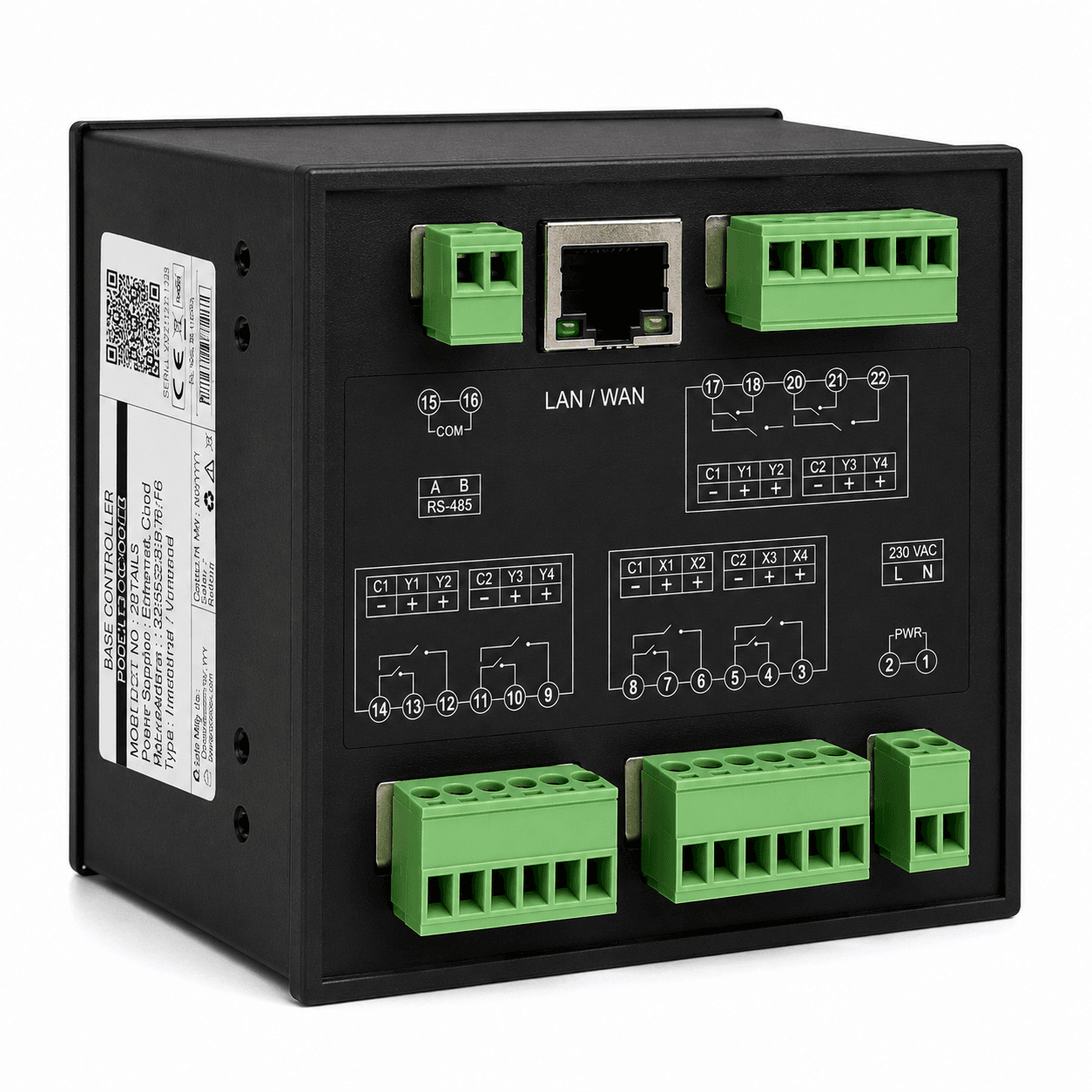

- Communication
- 1 x RS485, 1 LAN Port / 1 WAN Port
- Wireless Connectivity
- External antenna for supported wireless / cloud connectivity
- Mounting
- Panel mount
- Front Protection
- IP65
- Dimensions (W x H x D)
- 96 x 96 x 70 mm
- Panel Cutout
- 92 x 92 mm
- Operating Use
- Indoor industrial panel installation
Applications of the Data Logger
- 01Industrial Automation
- 02Cold Storage & Refrigeration
- 03Pharmaceutical & Food Industries
- 04Water & Wastewater Systems
- 05BMS & Industrial IoT
