Sense · Process Sensors
Temperature Sensor
SENSE-TM100

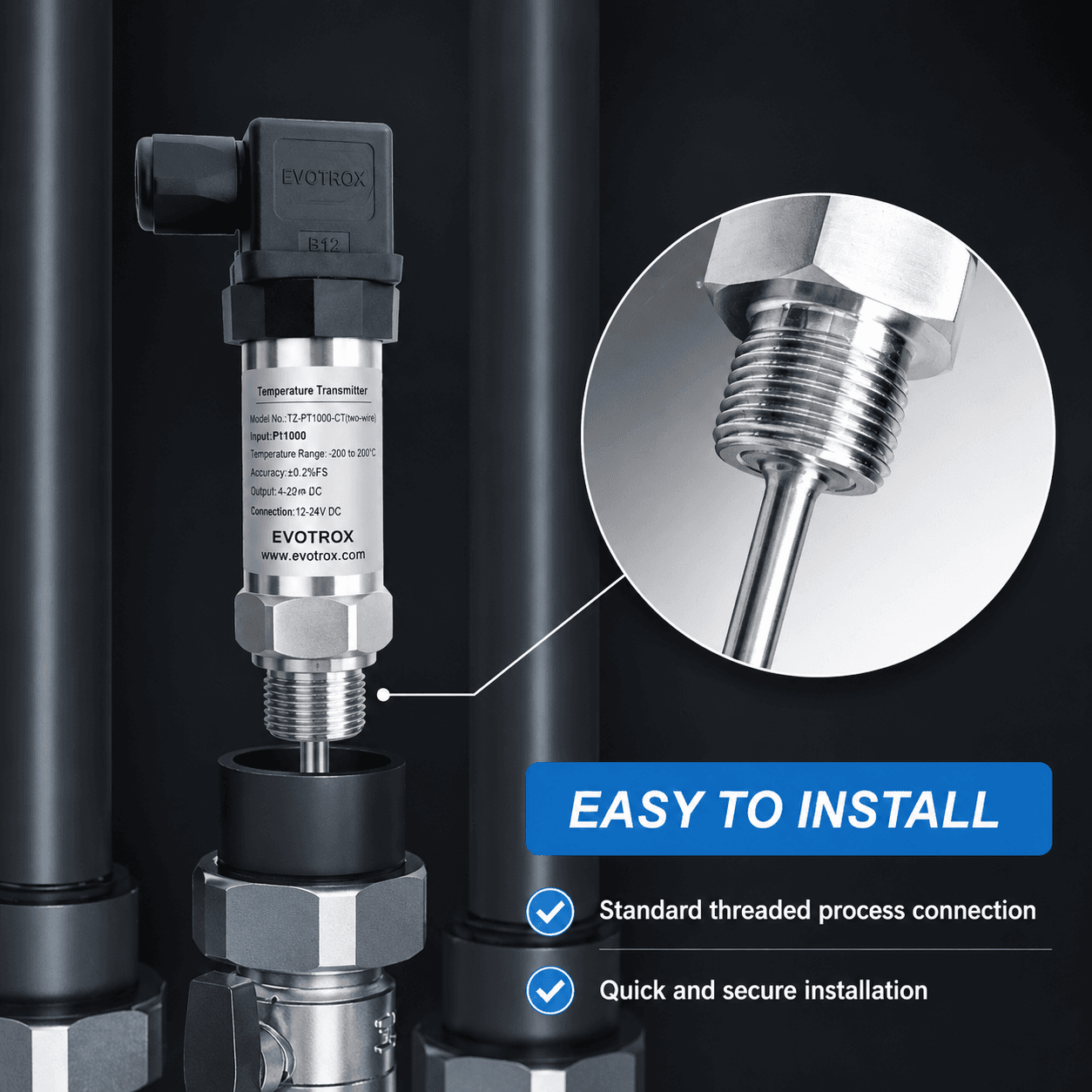

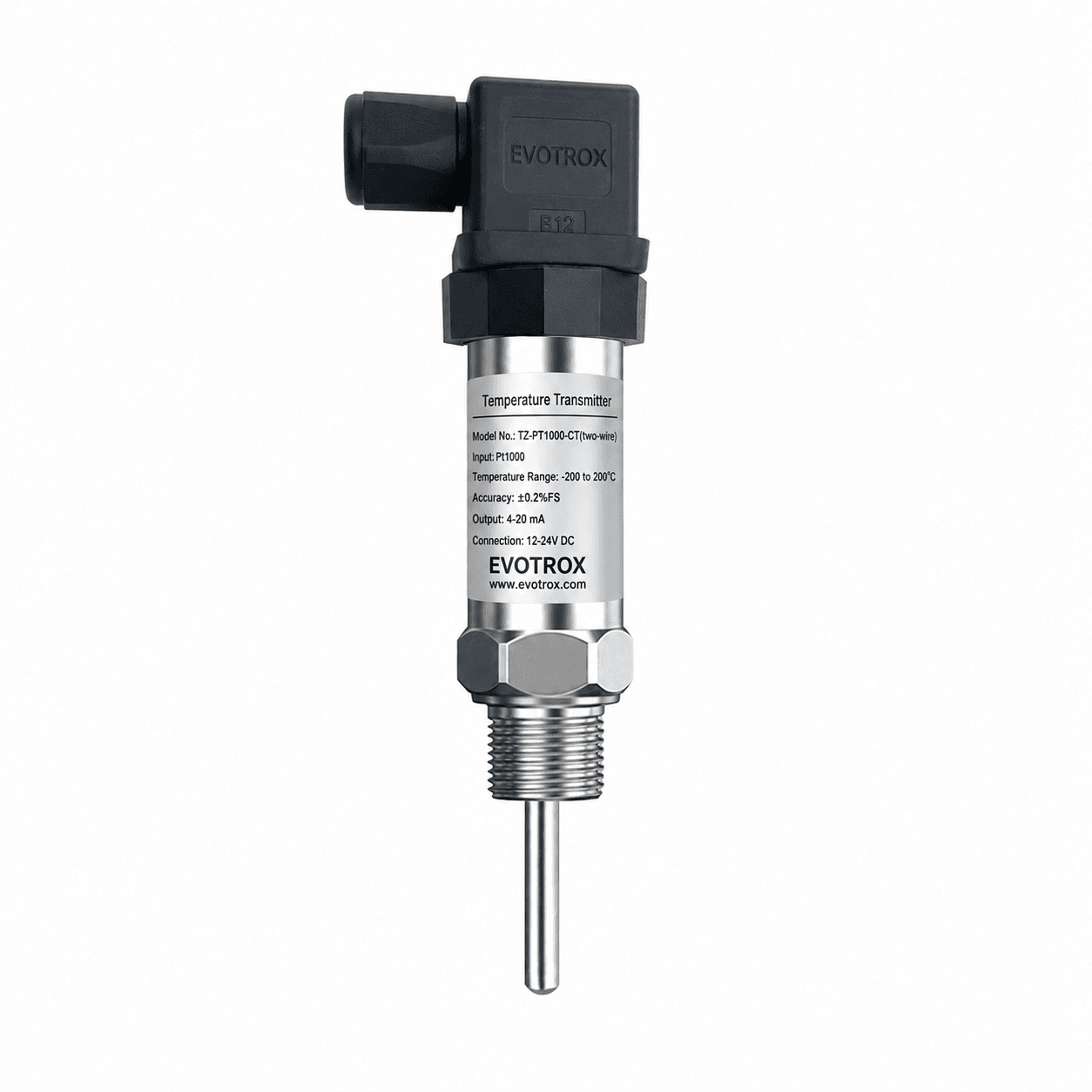

The SENSE-TM100 is a compact, weatherproof temperature sensor with a stainless-steel probe, designed for reliable long-term operation in demanding industrial environments.
1 / 2- RTD Temperature Monitoring
- 4–20 mA Output
- Range: -20°C to +80°C
- ±0.2% FS Accuracy
About the Temperature Sensor SENSE-TM100
The SENSE-TM100 is a compact, weatherproof temperature sensor with a stainless-steel probe, designed for reliable long-term operation in demanding industrial environments.
Key features
- RTD Temperature Monitoring
- 4–20 mA Output
- Range: -20°C to +80°C
- ±0.2% FS Accuracy
- Rugged Stainless-Steel Probe
Temperature Sensor technical specification
Download PDF- Power Supply
- 12-24 VDC (2-wire loop powered)
- Power Supply Range
- 12 VDC to 24 VDC
- Power Consumption
- Loop powered (no separate supply current draw)
- Temperature Range
- (V1) -20.0°C to +80.0°C / (V2) -100.0°C to +100.0°C
- Sensor Input
- RTD
- Temperature Accuracy
- ±0.2% FS
- Model No.
- TZ- -CT (Two-Wire)
- Output Type
- 4-20 mA (2-wire current loop)
- Protection Class
- IP65*
Applications of the Temperature Sensor
- 01Tanks, Pipelines & Vessels
- 02HVAC, Boiler & Utility Rooms
- 03Cold Storage & Refrigeration
- 04Food & Pharmaceutical Plants
- 05SCADA, PLC, BMS & IoT Systems
Temperature Sensor datasheets and downloads
Need this for your project?
Tell us about your application and our engineers will recommend the right configuration, with pricing and lead times.
