Temperature & RH Transmitter
SENSE-TH200

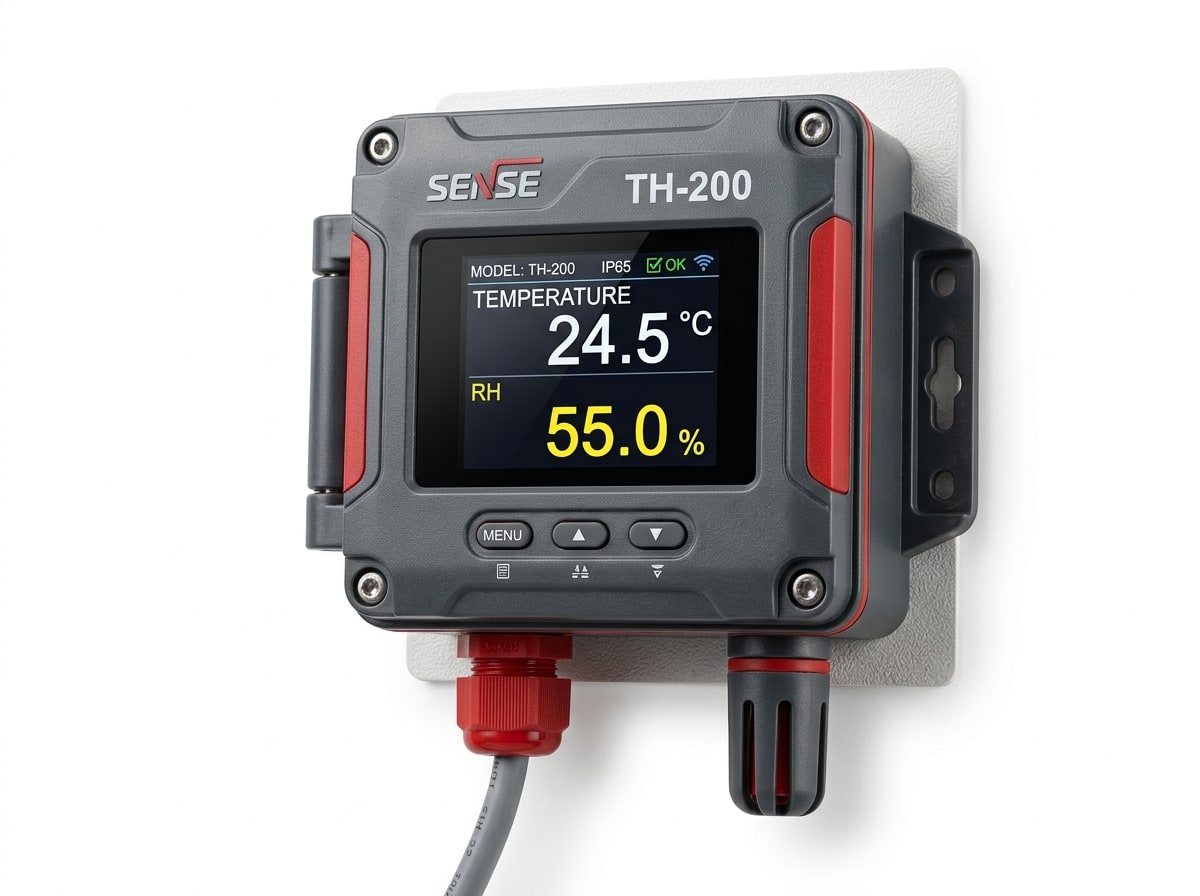

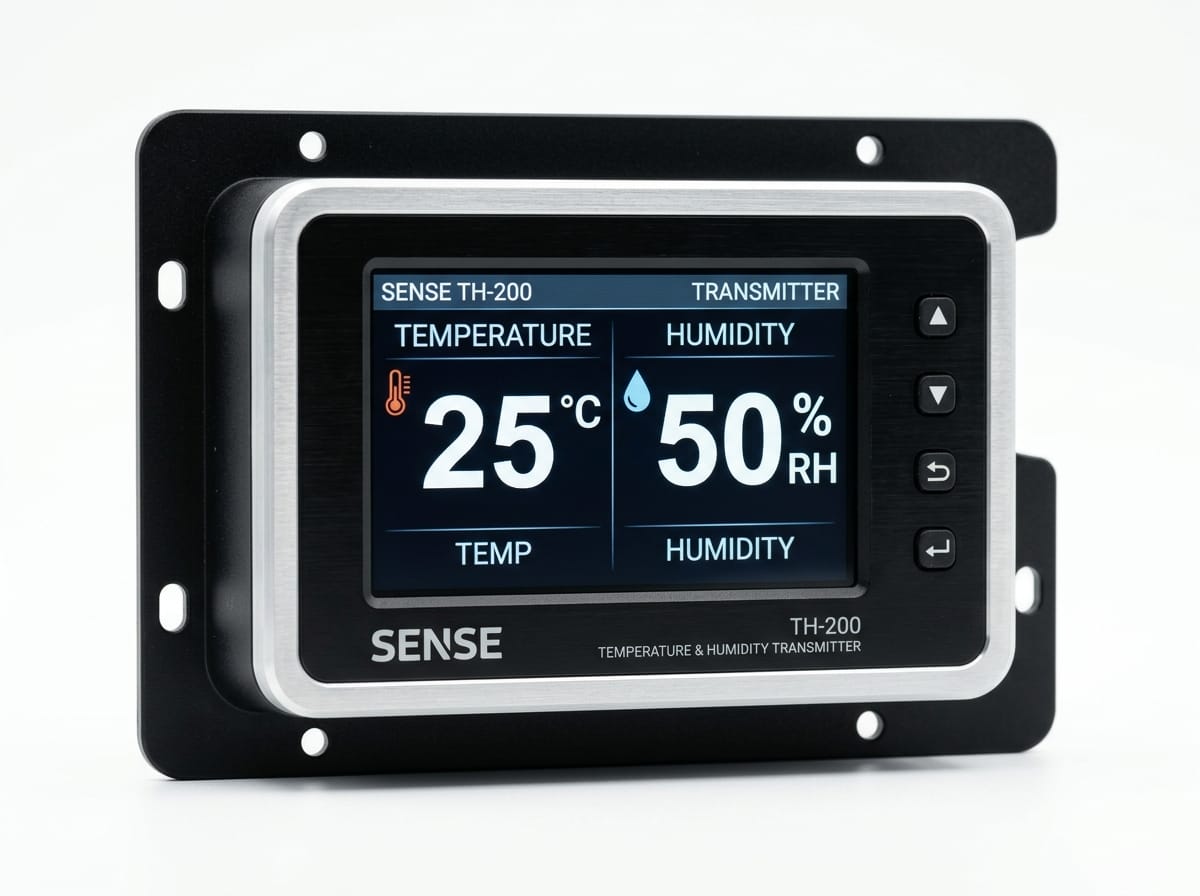

The SENSE-TH200 is a weatherproof industrial Temperature & Humidity Transmitter designed for accurate monitoring of ambient temperature and relative humidity.
1 / 3- 2.4" TFT Display with 4–20 mA & RS485
- Ethernet, Wi-Fi & Cloud Connectivity
- 24×7 Temperature & RH Monitoring
- Weatherproof Enclosure
About the Temperature & RH Transmitter SENSE-TH200
The SENSE-TH200 is a weatherproof industrial Temperature & Humidity Transmitter designed for accurate monitoring of ambient temperature and relative humidity. It provides local display, analog and relay outputs, RS485 Modbus, Ethernet, and IoT connectivity for industrial automation systems.
Key features
- 2.4" TFT Display with 4–20 mA & RS485
- Ethernet, Wi-Fi & Cloud Connectivity
- 24×7 Temperature & RH Monitoring
- Weatherproof Enclosure
- Reverse polarity and incorrect wiring protection.
Temperature & RH Transmitter technical specification
Download PDF- Sensor Technology
- Capacitive Sensing
- Measured Parameters
- Temperature + Relative Humidity
- Temperature Range
- 0 – 100 °C
- Humidity Range
- 0 – 100 % RH
- Temperature Accuracy
- ±0.3°C Typical
- Humidity Accuracy
- ±2% RH Typical
- Output Type
- 2 × 4–20mA
- Display
- TFT LCD color display
- User Interface
- Keypad for device configuration
- Typical Power Supply
- 24 VDC
- Power Supply Range
- 12 – 30 VDC
- PoE
- PoE support through Ethernet interface, depending on ordered variant
- Additional Outputs
- Relay Output
- Communication
- RS485 Modbus RTU, Ethernet Modbus TCP/IP
- Cloud Protocols
- MQTT(S), HTTP(S)
- Internet Connectivity
- Ethernet / Wi-Fi depending on model variant
- Operating Temperature
- -15°C to +50°C or as per final sensor datasheet
- Storage Temperature
- -10°C to +60°C or as per final sensor datasheet
- Mounting
- Wall / surface mount
- Operation
- Continuous 24x7 monitoring
Applications of the Temperature & RH Transmitter
- 01Cold Storage, Cold Rooms & Warehouses
- 02HVAC, Compressor & Utility Rooms
- 03Water Treatment & Industrial Facilities
- 04Food, Dairy & Pharmaceutical Plants
- 05SCADA, BMS, PLC & IoT Monitoring Systems
