Edge IoT Gateway

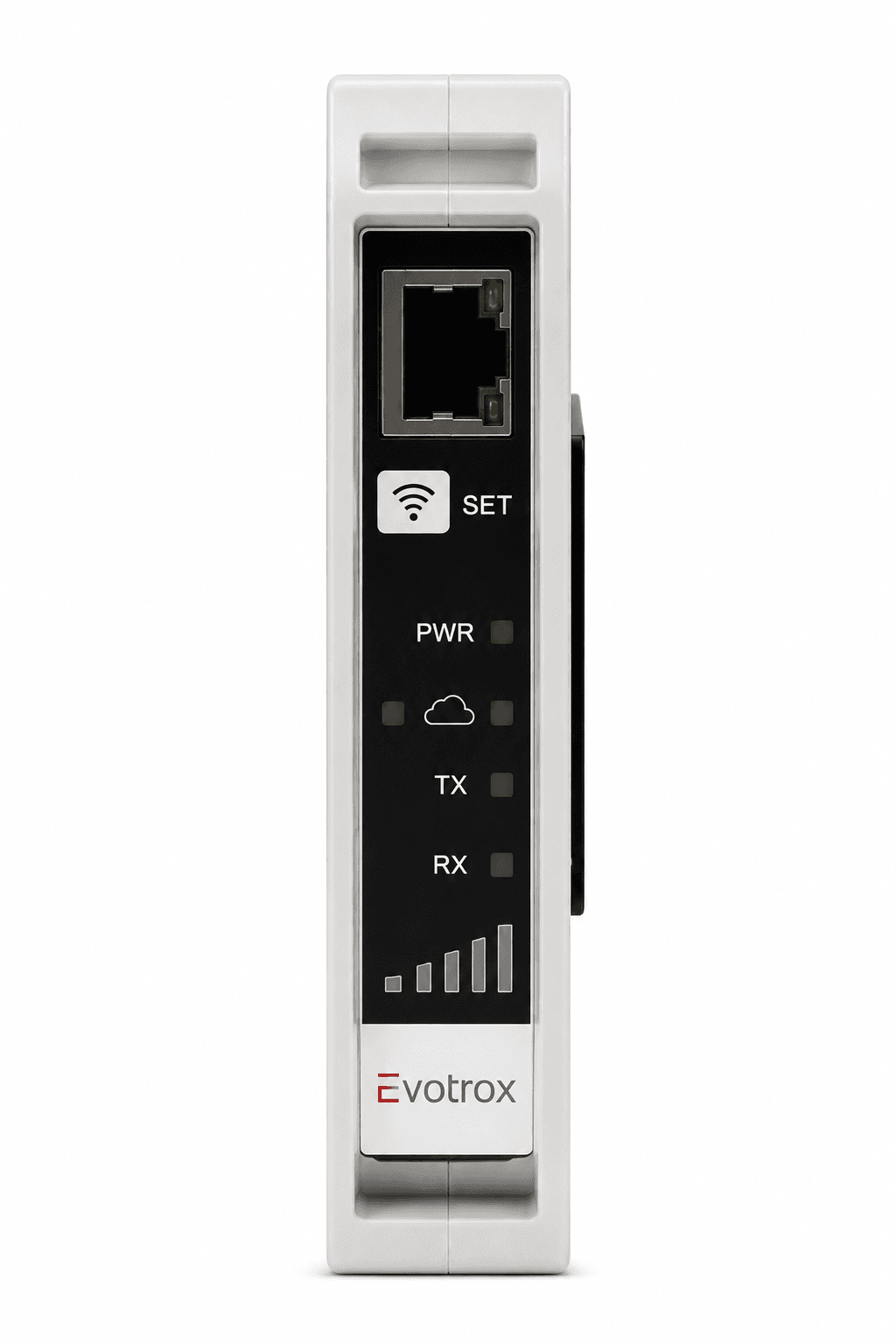

EDGELINK-GM200
The EDGELINK-GM200 is a compact DIN-rail industrial IoT gateway that collects data from field devices and transmits it to local systems or cloud platforms.
1 / 3- Industrial Edge IoT Gateway
- RS485 Communication (Modbus, Profibus, OPC-UA)
- Ethernet, Wi-Fi & 4G LTE Connectivity
- MQTT/HTTP Cloud & Linked IoT Support
About the Edge IoT Gateway EDGELINK-GM200
The EDGELINK-GM200 is a compact DIN-rail industrial IoT gateway that collects data from field devices and transmits it to local systems or cloud platforms. It supports RS485/Modbus communication with Ethernet, Wi-Fi, and optional 4G LTE for reliable remote monitoring.
Key features
- Industrial Edge IoT Gateway
- RS485 Communication (Modbus, Profibus, OPC-UA)
- Ethernet, Wi-Fi & 4G LTE Connectivity
- MQTT/HTTP Cloud & Linked IoT Support
- DIN-Rail Mount with Web Configuration & FOTA
Edge IoT Gateway technical specification
Download PDF- Mounting
- DIN Rail Mount
- Enclosure Material
- Industrial grade ABS/PC
- Supply Voltage
- 24 VDC
- Operating Range
- 18 to 30 VDC
- Power Consumption
- < 5 W
- Internal Memory
- Onboard 4 GB Inbuilt Storage
- Serial Port
- 1 x RS-485
- Baud Rate
- 1200 to 38400 bps
- Protocol
- Primary Modbus RTU / TCP (Supported More than 300+ Field Protocols)
- Ethernet Port
- 1 x 10/100 Mbps RJ45
- Wi-Fi
- 2.4 GHz IEEE 802.11 b/g/n
- IP Mode
- DHCP / Static
- Cellular Interface
- 4G LTE (Optional)
- Cloud Protocols
- MQTT(S), HTTP(S)
- Remote Access
- Supported
- Data Logging
- Supported
- Store-and-Forward
- Supported
- Event-Based Reporting
- Supported
- Device Diagnostics
- Supported
- Configuration Method
- Web UI
- Firmware Upgrade
- FOTA supported
- Status LEDs
- PWR, Cloud, TX, RX, Signal
- Operating Temperature
- 0°C to +60°C
- Storage Temperature
- 0°C to +80°C
- Humidity
- 10 to 90% RH (Non-condensing)
- Standards
- CE, RoHS (model dependent)
Applications of the Edge IoT Gateway
- 01Industrial Automation & PLC/SCADA
- 02Remote Equipment & Energy Monitoring
- 03Water, HVAC & Building Automation
- 04Cold Storage & Utility Systems
- 05Industrial IoT & Cloud Monitoring
Edge IoT Gateway datasheets and downloads
Need this for your project?
Tell us about your application and our engineers will recommend the right configuration, with pricing and lead times.
