Connect · Gateway Modules

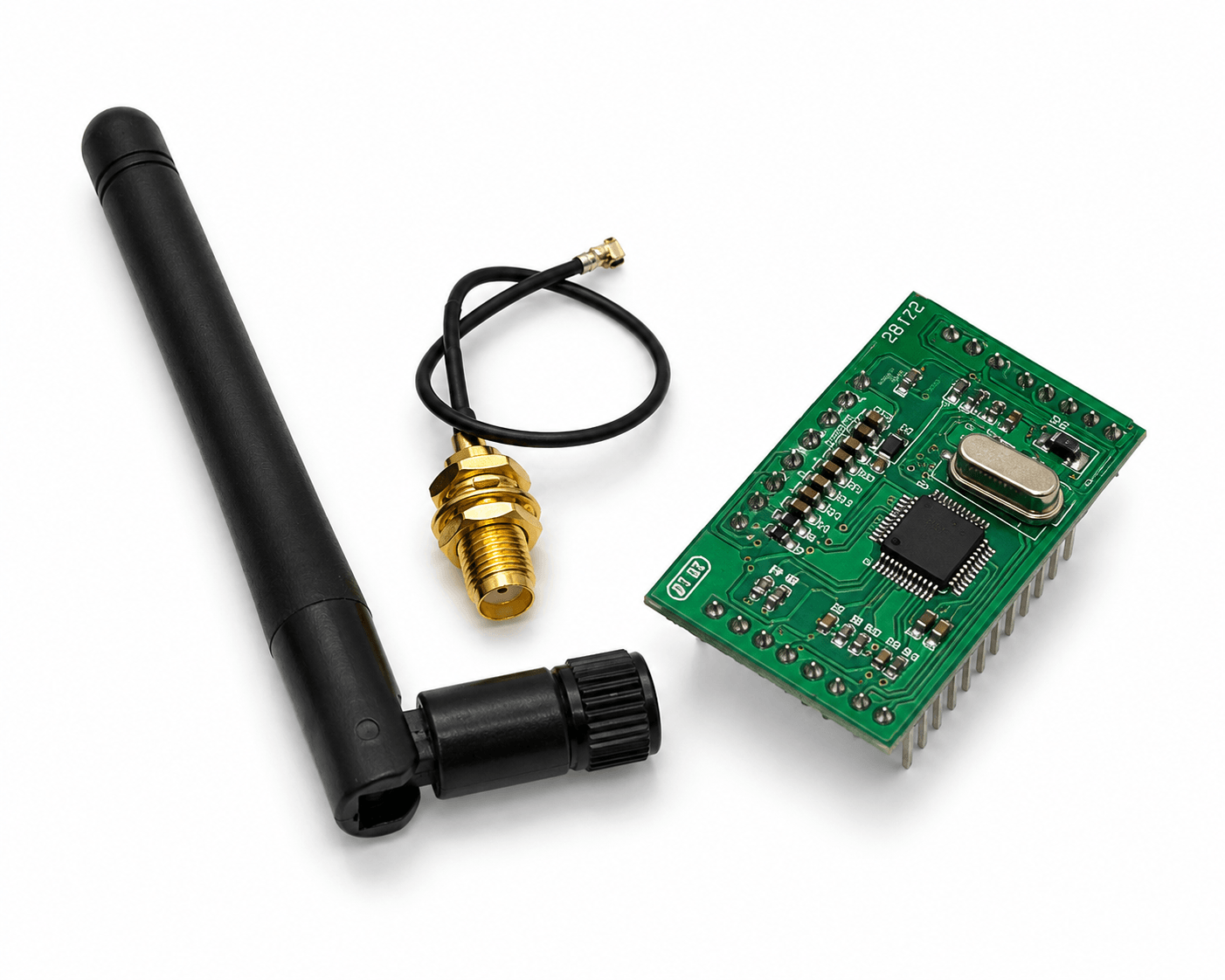

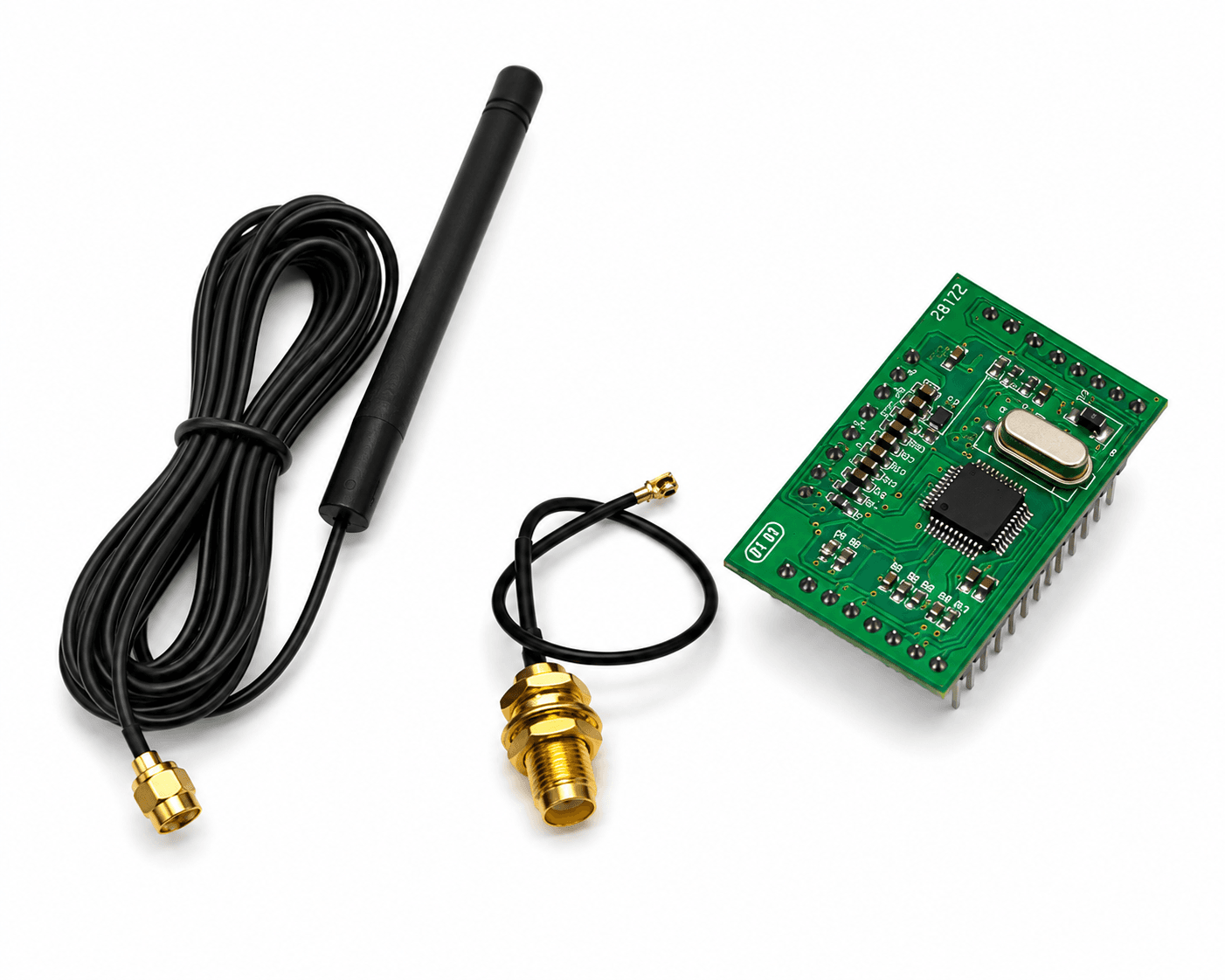

Edge IoT Module
EDGELINK-GM100
The EDGELINK-GM100 is a compact industrial IoT communication gateway that collects data from field devices and transmits it to local systems or cloud platforms.
1 / 2- Industrial Edge IoT Gateway
- Ethernet, Wi-Fi & 4G LTE
- RS485 (Modbus, Profibus, OPC-UA)
- MQTT/HTTP Cloud Connectivity
About the Edge IoT Module EDGELINK-GM100
The EDGELINK-GM100 is a compact industrial IoT communication gateway that collects data from field devices and transmits it to local systems or cloud platforms. It supports RS485/Modbus communication with Ethernet, Wi-Fi, and optional 4G LTE connectivity for reliable remote monitoring.
Key features
- Industrial Edge IoT Gateway
- Ethernet, Wi-Fi & 4G LTE
- RS485 (Modbus, Profibus, OPC-UA)
- MQTT/HTTP Cloud Connectivity
- Web Configuration & FOTA
Edge IoT Module technical specification
- Mounting
- DIN Rail Mount
- Enclosure Material
- Industrial grade ABS/PC
- Supply Voltage
- 3 VDC
- Operating Range
- 2.7 VDC to 3.3 VDC
- Power Consumption
- < 1 W
- Internal Memory
- Onboard 4 GB Inbuilt Storage
- Serial Port
- 1 x RS-485
- Baud Rate
- 1200 to 38400 bps
- Protocol
- Primary Modbus RTU / TCP (Supported More than 300+ Field Protocols)
- Ethernet Port
- 1 x 10/100 Mbps RJ45
- Wi-Fi
- 2.4 GHz IEEE 802.11 b/g/n
- IP Mode
- DHCP / Static
- Cloud Protocols
- MQTT(S), HTTP(S)
- Remote Access
- Supported
- Data Logging
- Supported
- Store-and-Forward
- Supported
- Event-Based Reporting
- Supported
- Device Diagnostics
- Supported
- Configuration Method
- Web UI
- Firmware Upgrade
- FOTA supported
- Status LEDs
- PWR, Cloud, TX, RX, Signal
- Operating Temperature
- 0°C to +60°C
- Storage Temperature
- 0°C to +80°C
- Humidity
- 10 to 90% RH (Non-condensing)
- Standards
- CE, RoHS (model dependent)
Applications of the Edge IoT Module
- 01Industrial Automation & PLC/SCADA Systems
- 02Remote Equipment & Energy Monitoring
- 03Water, HVAC & Building Automation
- 04Cold Storage & Smart Utility Monitoring
- 05Industrial IoT & Cloud Monitoring
