Sense · Air Quality Monitors

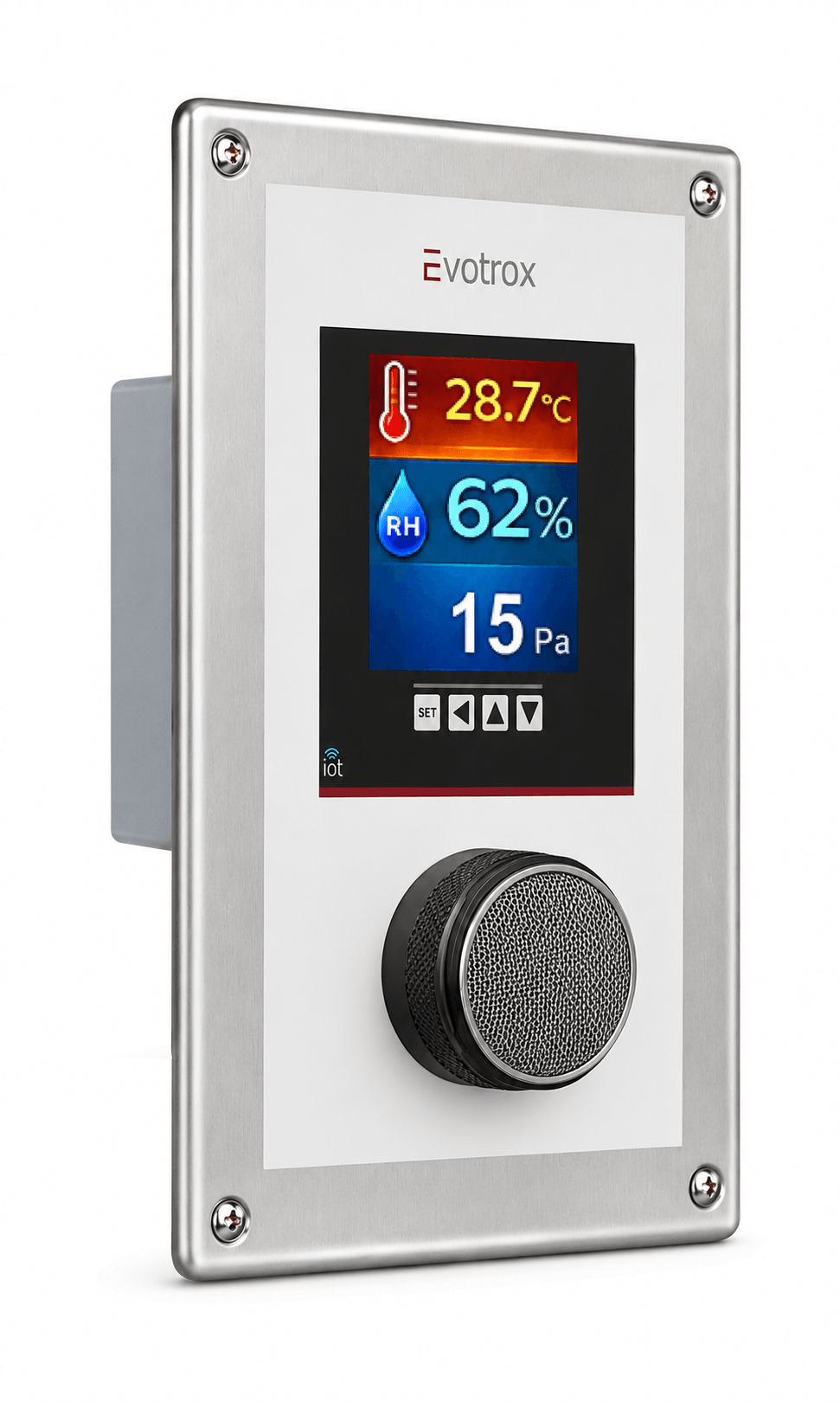

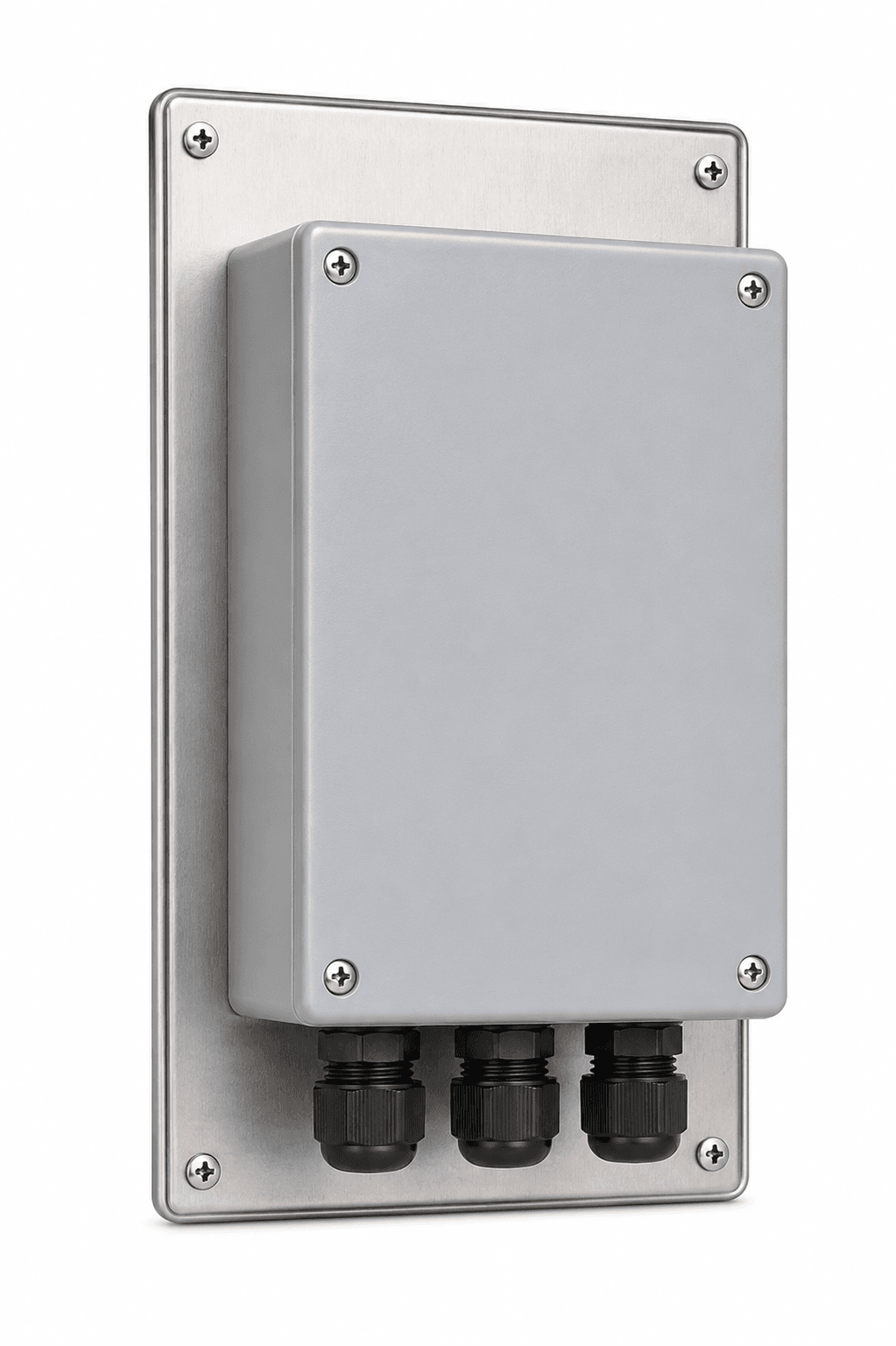

Clean Room Monitor
SENSE-AM100
The SENSE-AM100 is a compact panel-mount monitoring platform for temperature, humidity and differential pressure, designed for clean rooms, pressure cascade monitoring, alarm indication and cloud-based supervision.
1 / 2- Temp, RH & Differential Pressure Monitoring
- Real-Time 4.3" Display
- Modbus & Ethernet Connectivity
- Wi-Fi & Cloud Ready
About the Clean Room Monitor SENSE-AM100
The SENSE-AM100 is a compact panel-mount monitoring platform for temperature, humidity and differential pressure, designed for clean rooms, pressure cascade monitoring, alarm indication and cloud-based supervision.
Key features
- Temp, RH & Differential Pressure Monitoring
- Real-Time 4.3" Display
- Modbus & Ethernet Connectivity
- Wi-Fi & Cloud Ready
- Alarm & Relay Output
- Reverse polarity protection
Clean Room Monitor technical specification
Download PDF- Sensor Technology
- Capacitive T+RH sensing + differential pressure sensing
- Measured Parameters
- Temperature + Relative Humidity + Differential Pressure
- Temperature Range
- 0 – 100 °C
- Humidity Range
- 0 – 100 % RH
- Temperature Accuracy
- ±0.3°C Typical
- Humidity Accuracy
- ±2% RH Typical
- Differential Pressure Range
- -500 Pa to +500 Pa
- Display
- 4.3 INCH TFT LCD color display
- User Interface
- Keypad for device configuration
- Typical Power Supply
- 24 VDC
- Power Supply Range
- 12 – 30 VDC
- PoE
- PoE support through Ethernet interface, depending on ordered variant
- Additional Outputs
- Relay Output
- Communication
- RS485 Modbus RTU, Ethernet Modbus TCP/IP
- Cloud Protocols
- MQTT(S), HTTP(S)
- Internet Connectivity
- Ethernet / Wi-Fi depending on model variant
- Operating Temperature
- -15°C to +50°C or as per final sensor datasheet
- Mounting
- Panel mount
- Operation
- Continuous 24x7 monitoring
Applications of the Clean Room Monitor
- 01Pharmaceutical Clean Rooms
- 02Hospitals & Operation Theatres
- 03Laboratories & Research Facilities
- 04HVAC & Indoor Air Quality
- 05SCADA, BMS, PLC & IoT Monitoring
Clean Room Monitor datasheets and downloads
Need this for your project?
Tell us about your application and our engineers will recommend the right configuration, with pricing and lead times.
