Control · Controllers
Industrial Controller Unit
LOGIC-200

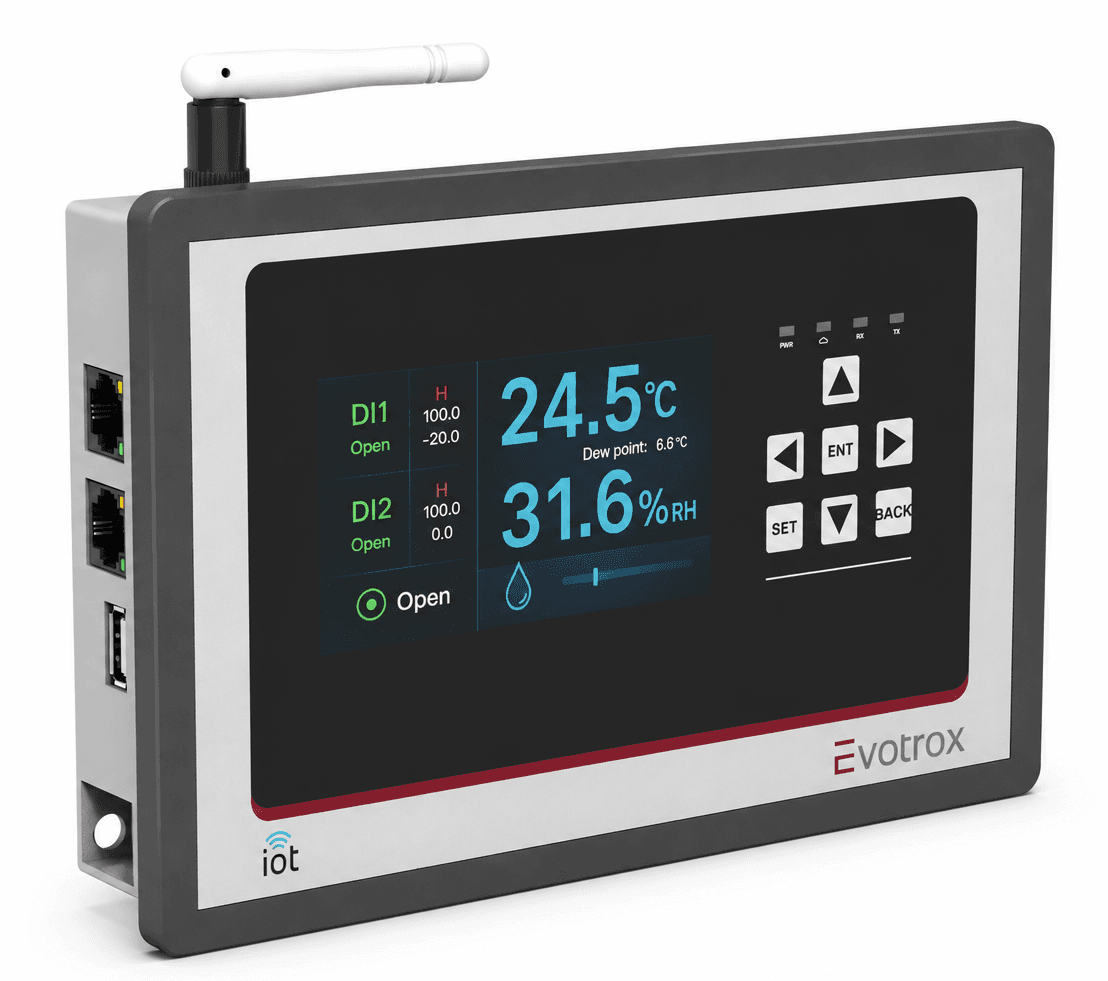

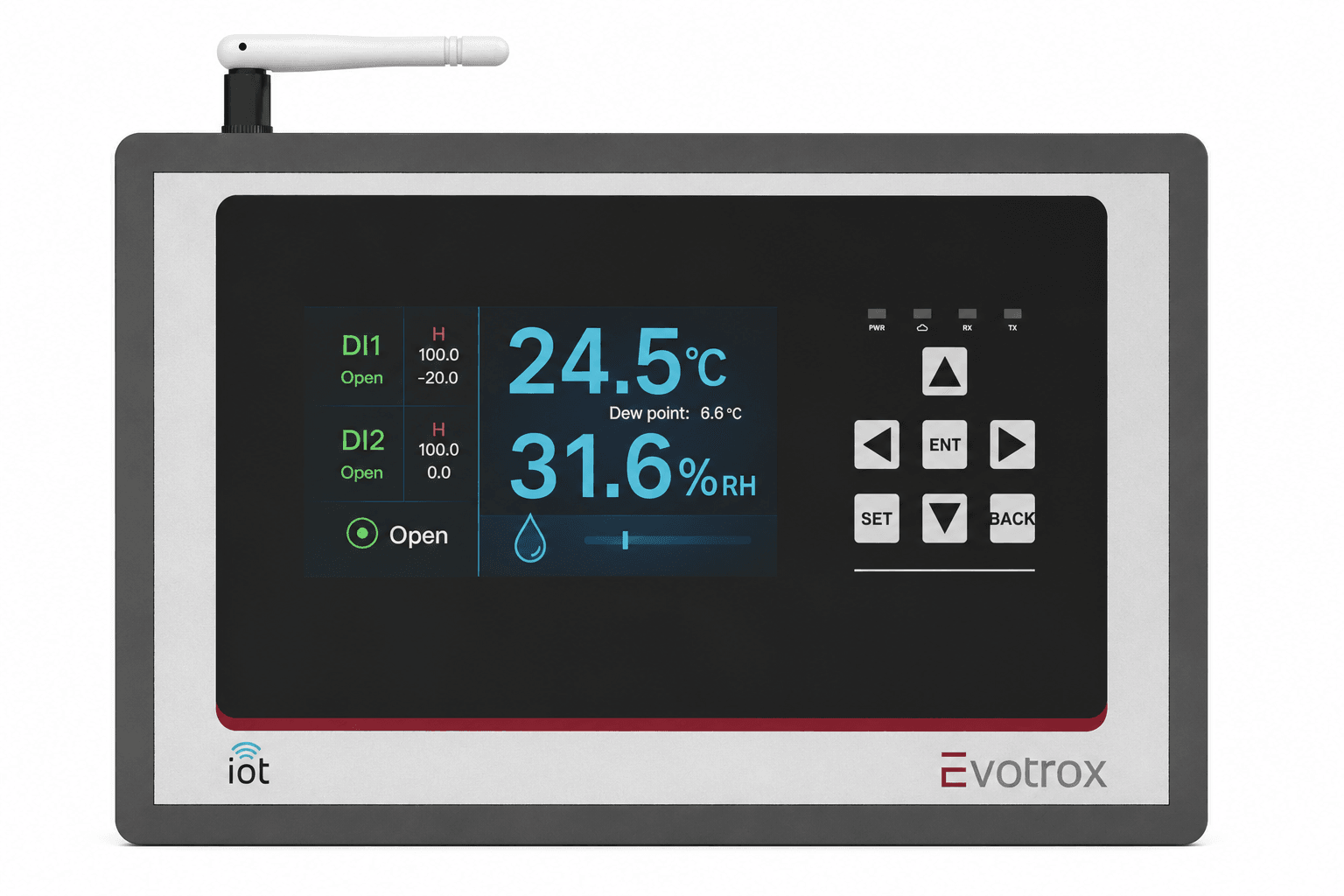

The LOGIC-CT200 combines display, keypad, communication, data logging, and IoT functionality into a single panel.
1 / 3- 4.3" TFT Display & 7-Key Navigation
- Real-Time Monitoring & Alarms
- Configurable I/O & Modbus RS485
- Ethernet, Cloud & Data Logging
About the Industrial Controller Unit LOGIC-200
The LOGIC-CT200 combines display, keypad, communication, data logging, and IoT functionality into a single panel. Mounted controller platform. It is intended to simplify monitoring and control applications while providing local operation and remote visibility.
Key features
- 4.3" TFT Display & 7-Key Navigation
- Real-Time Monitoring & Alarms
- Configurable I/O & Modbus RS485
- Ethernet, Cloud & Data Logging
- FOTA, IP65 & Industrial Design
Industrial Controller Unit technical specification
Download PDF- Supply Voltage
- 24 VDC, < 10 W
- Display
- 4.3-inch TFT

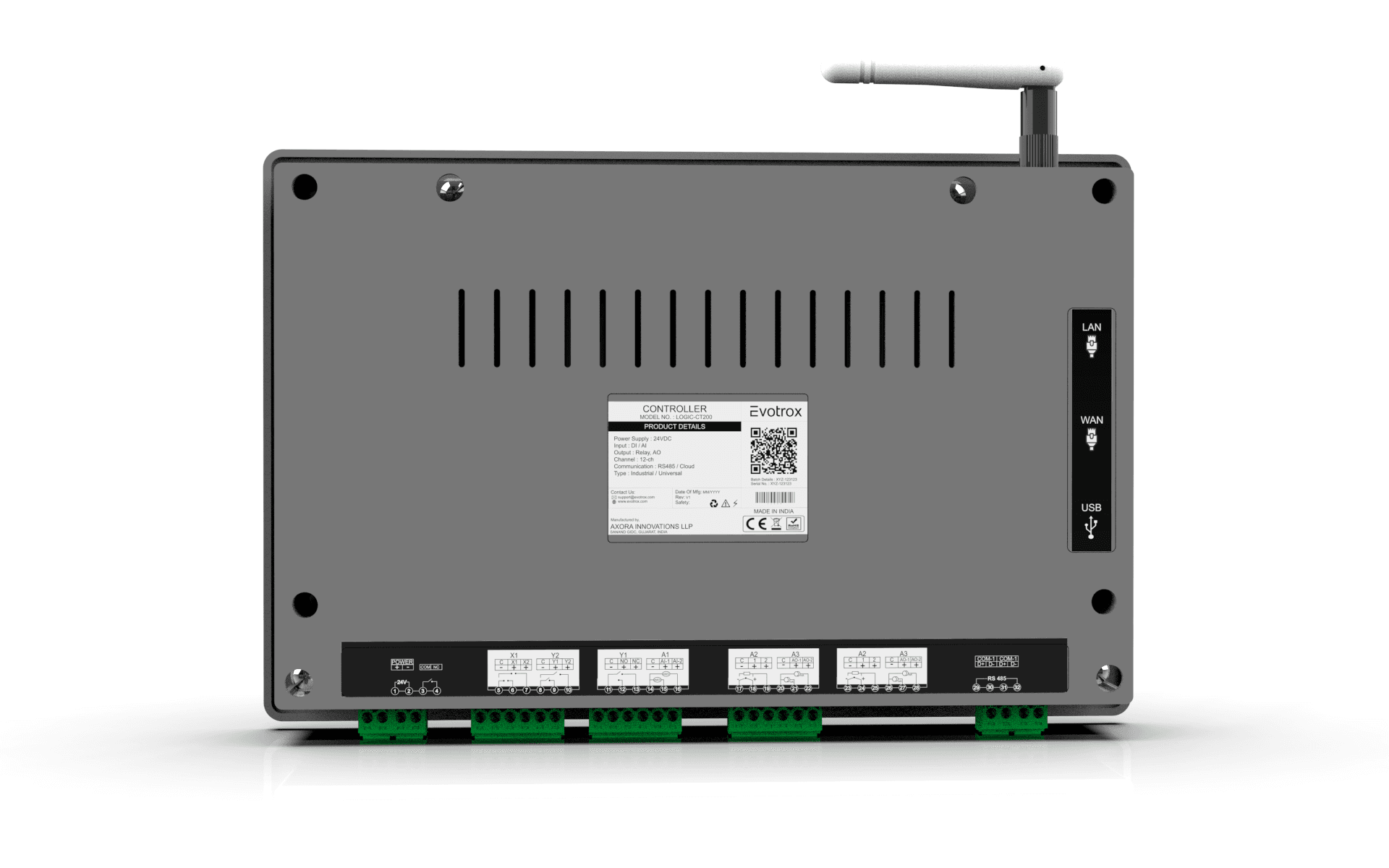

- Communication
- 2 x RS485, 1 LAN Port, 1 WAN Port
- USB
- USB data export
- Wireless Connectivity
- External antenna for supported wireless / cloud connectivity
- Mounting
- Panel mount
- Front Protection
- IP65
- Dimensions (W x H x D)
- 230 x 150 x 30 mm
- Panel Cutout
- 217 x 139 mm
- Operating Use
- Indoor industrial panel installation
Applications of the Industrial Controller Unit
- 01Industrial Automation
- 02Cold Storage & Refrigeration
- 03Pharma & Food Processing
- 04Water & Building Management
- 05IoT & Environmental Monitoring
